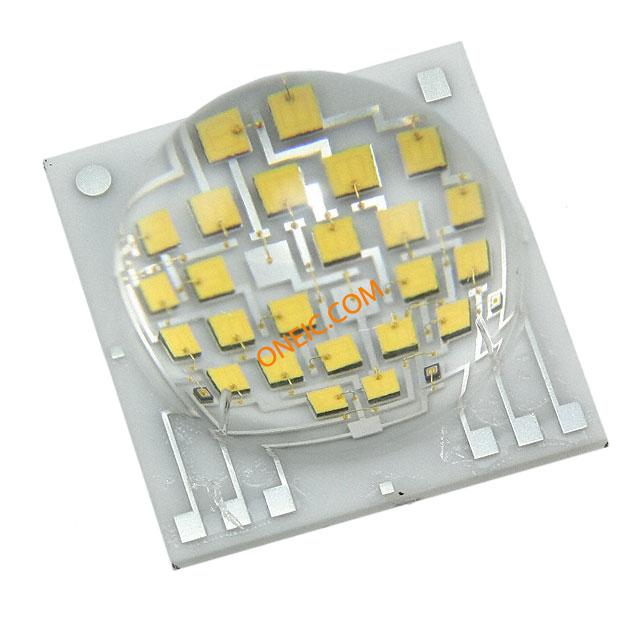

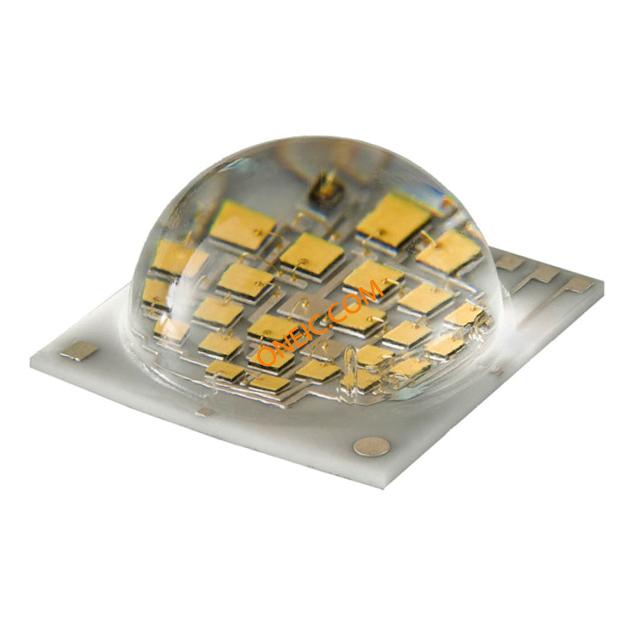

MPLEZW-A1-0000-0000B030F
| 制造商 | Wolfspeed, Inc. |
| 描述 | High Power LEDs - White EasyWhite 700lm XLamp MPL LED LED Uni-Color White 6-Pin SMD T/R LED WARM WHITE 3000K 700LM SMD LED, EASYWHITE, LUM FLUX 700LM |
| 分类 |
商业参数
| 其他名称 | MPLEZW-A1-0000-0000B030FTR | 标准包装数量 | 500 |
| 标准封装名称 | SMD | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85414010 | ||
电气参数
| 灯输出 | Yes | 光通量 | 700 lm |
| 视角 | 125 deg | 输出电流 | 3 x 150mA |
| 供电电压 | 25V | LED正向电流 | 150 mA |
| LED正向电压 | 25 V | 最大额定电流 | 3 x 250mA |
| 最大功耗 | :11.3W | 光效 @ 测试电流 | 67 lm/W |
| 25°C时测试电流下的光通量 | 750 lm (700 lm ~ 800 lm) | 光通量 @ 85°C, 测试电流 | 563 lm |
| 直流正向电流（If）（最大） | :250mA | 峰值脉冲电流（10/1000µs） | 250 |
机械参数
| 颜色 | White | 宽度 | 12.15 mm |
| 高度 | 6.1 mm | 长度 | 13.15 mm |
| 重量 | 0.0001 | LED颜色 | :Warm White |
| 包装方式 | Reel | 灯颜色 | 3000 K |
| 透镜颜色 | Clear | 透镜样式 | Circular |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :6 | 光学材料（应为封装材料） | :- |
| 封装形式 | 6-SMD | 包装数量 | SMD |
| 照明颜色 | Warm White | 位数 | 6 |
| 显色指数（CRI） | 80 | ||
产品信息
| 类型 | Uni-Color | 系列 | :XLamp MP-L |
| 色温 (K) | 3000K (2925K ~ 3125K) 4-Step MacAdam Ellipse | LED数量 | 1 |
环境参数
| 光通量 @ 电流/温度 | 975 lm | ||
相关型号
TPS61040QDBVRQ1
texas instruments
Conv DC-DC Single Step Up 1.8V to 6V 5-Pin SOT-23 T/R LED Lighting Drivers Auto Cat Low Pwr DC/DC Boost Cnvrtr IC LED DRVR WHITE BCKLGT SOT23-5 LED DRIVER, SOT23-5 Automotive Catalog Low Power 400-mA DC/DC Boost Converter Switching Voltage Regulators Auto Cat Low Pwr DC/DC Boost Cnvrtr

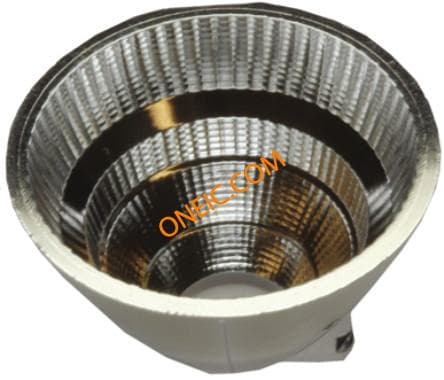

C11396_TYRA-W
ledil
Reflector Is Made Of Aluminum Coated PC With Protective Laquer REFLECTOR 1P 40MM RND OD 23.1MM Cree MP-L Optic Reflector Pins "TYCO" LED Lighting Reflectors CREE MP-L SNGL LENS REFLECTOR & LOC PIN LED REFLECTOR, 26°, WIDE, CREE MPL CREE MPL 40MM REFLECTOR WIDE
2106946-6
te connectivity / amp
Solderless LED Socket, Type CM LED Lighting Mounting Accessories LED to Inv Wire w/ Latch Cree XLAMP INVERTED LED-WIRE W/OPTICS LATCH INVERTED LED TO WIRE ASY, W/ OPTICS

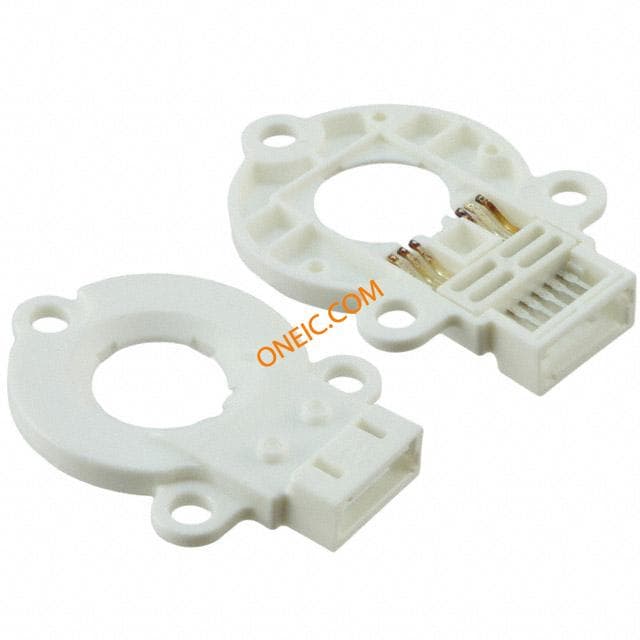

2106946-1
te connectivity / amp
Solderless LED Socket, Type CM LED TO WIRE ASSY W/O OPTIC LATCH TE Connectivity 2106946-1 LED Holder for Cree XLamp MP-L, 26mm dia. Lighting Connectors SKT TYP CM LED 2 WIRE W/O LATCH LED TO WIRE ASY, W/O OPTICS LEDtoWireSocketTypeCM,w/oLatch TE Connectivity LED 座, 26mm直径, 使用于Cree XLamp MP-L LEDs

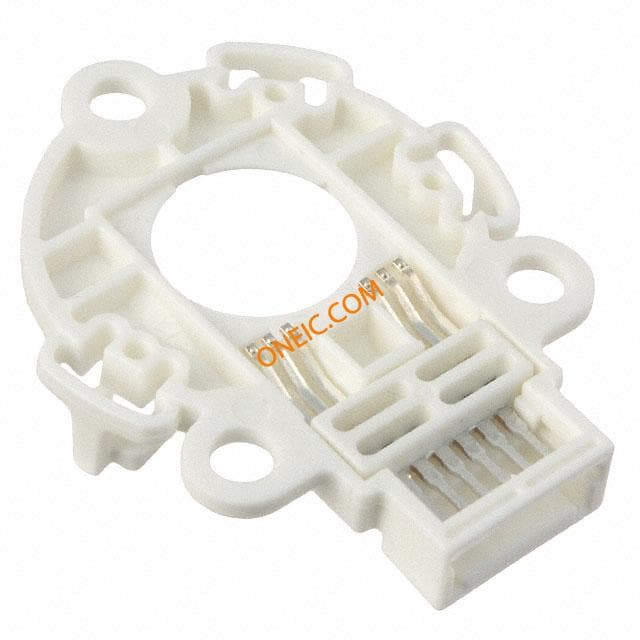

2106946-2
te connectivity / amp
Solderless LED Socket, Type CM LED TO WIRE ASSY W/OPTICS LATCH TE Connectivity 2106946-2 LED Holder for Cree XLamp MP-L, 26mm dia. Solderless LED Socket, Type CM Search Keywords:solderless, LED, socket, Type LS, Luxeon S, Type CM, Type BR, Philips lumineds, Bridgelux RS LED TO WIRE ASY, W/ OPTICS LEDtoWireSocketTypeCM,w/Latch TE Connectivity LED 座, 26mm直径, 使用于Cree XLamp MP-L LEDs
2106946-3
te connectivity / amp
Solderless LED Socket, Type CM LED TO BOARD W/O OPTICS LATCH TE Connectivity 2106946-3 LED Holder for Cree XLamp MP-L, 26mm dia. Lighting Connectors LED to Brd w/o Latch Cree XLAMP LED TO WIRE ASY, W/O OPTICS LEDtoBoardSocketTypeCM,w/oLatch TE Connectivity LED 座, 26mm直径, 使用于Cree XLamp MP-L LEDs

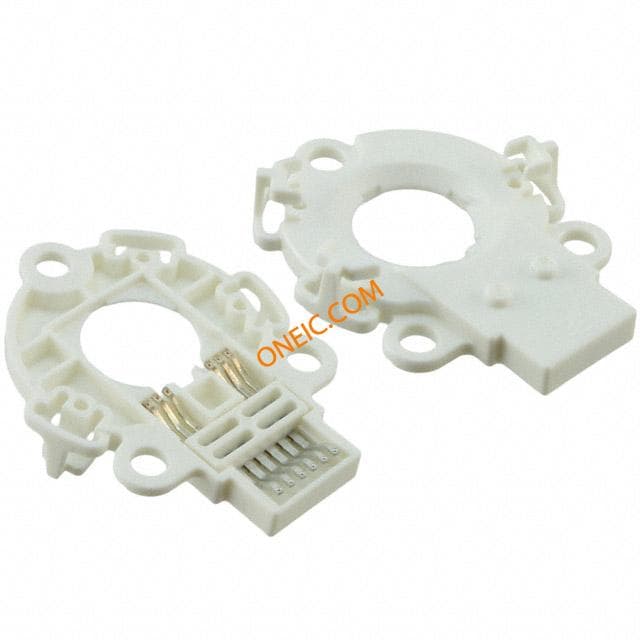

2106946-4
te connectivity / amp
Solderless LED Socket, Type CM LED TO BOARD W/OPTICS LATCH TE Connectivity 2106946-4 LED Holder for Cree XLamp MP-L, 26mm dia. Lighting Connectors SKT TYP CM LED 2 BRD W/ LATCH Solderless LED Socket, Type CM Search Keywords:solderless, LED, socket, Type LS, Luxeon S, Type CM, Type BR, Philips lumineds, Bridgelux RS LED TO WIRE ASY, W/ OPTICS LEDtoBoardSocketTypeCM,w/Latch TE Connectivity LED 座, 26mm直径, 使用于Cree XLamp MP-L LEDs
2106946-5
te connectivity / amp
Solderless LED Socket, Type CM INVERT LED-WIRE W/O OPTICS LATCH LED Lighting Mounting Accessories LED to Inv Wire no Latch Cree XLAMP SOLDERLESS LED SOCKET INVERTED LED TO WIRE ASY, W/O OPTICS

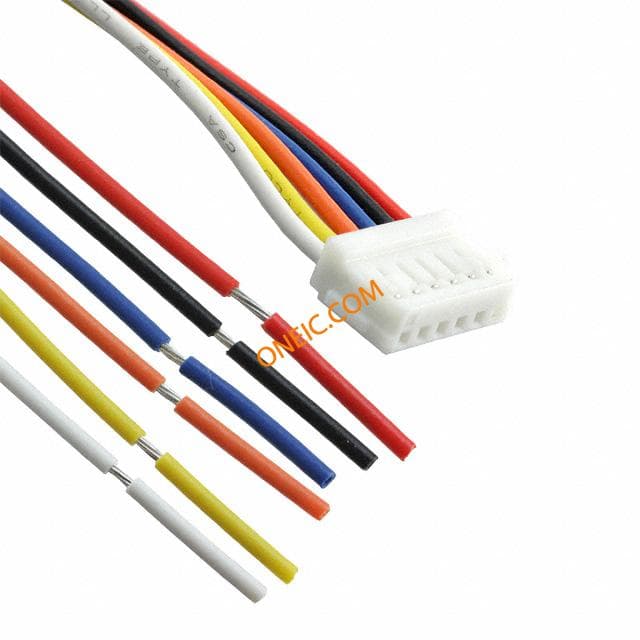

2058943-5
