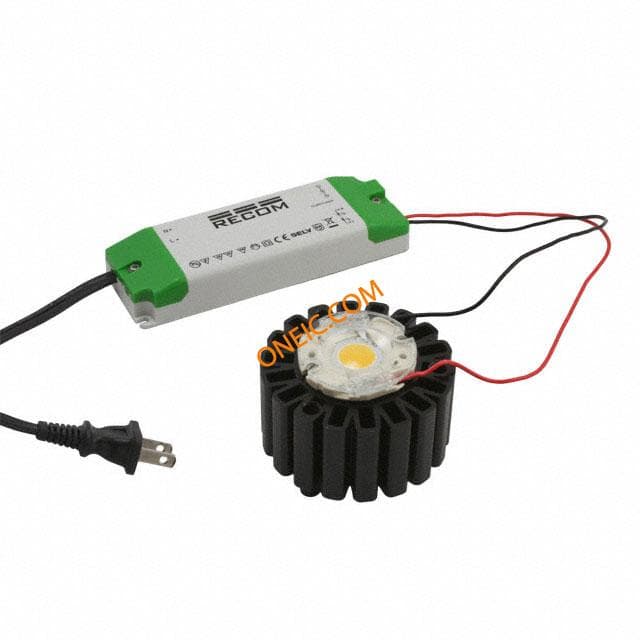

点击放大查看

CXA2011-0000-000P00G030H

制造商	Wolfspeed, Inc.
描述	High Power LEDs - White Warm White, 3000K 898lm, 270mA, 80CRI LED Uni-Color White 2-Pin Tube LED WARM WHITE 3000K SCREW MOUNT
分类	光电子学分立LED指示灯高亮LED

对参数有疑问？问 AI 助手

商业参数

其他名称

CXA20110000000P00G030H

标准包装数量

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

电气参数

电压	40V	波长	3000K
灯输出	Yes	光通量	898 lm
视角	120 deg	输出电流	270mA
驱动电路	No	LED正向电流	270 mA
LED正向电压	40 V	最大额定电流	1A
峰值脉冲电流（10/1000µs）	1000

机械参数

颜色	White	宽度	22 mm
高度	2.275 mm	长度	22 mm
包装方式	Tube	灯颜色	3000 K
透镜样式	Circular	安装类型	Screw
安装样式	SMD/SMT	连接器用途	No
总长度	22	照明颜色	Warm White
位数	2	外壳尺寸-插件	2.28
显色指数（CRI）	80

产品信息

类型	Uni-Color	系列	CXA2011
配置	Square	LED数量	1
印刷电路板数量	2

环境参数

工作温度

- 40 C

光通量 @ 电流/温度

840 lm
