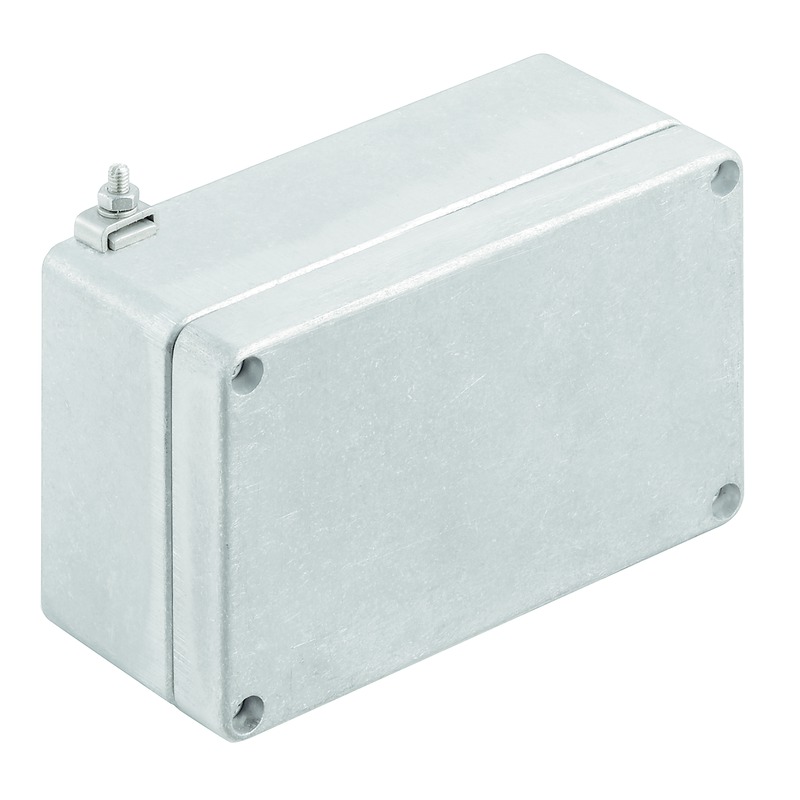

9526870000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | ENCLOSURE K21 AL M4 STUD |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | IEC标准 | 27-18-05-02 |
| 认证机构 | IECEx IBE13.0002X | 标准编号 | 31-26-15-02 |
| 保护特性 | IP66, IP67 | 认证机构标志 | 44536-07 |
电气参数
| 频率 | 27-18-05-02 | 连接器阻抗 | M4 torx stainless steel screws with slot |
机械参数
| 颜色 | Unpainted | 深度 | 57 mm |
| 宽度 | 125 mm | 高度 | 2.244" (57.00mm) |
| 重量 | 0.882 lb (400.07g) | 材料（通用） | Metal, Aluminum |
| 外壳样式 | left, right | 面积（长x宽） | 15.5" (100cm) |
| 安装类型 | Holes 4 mm | 外壳镀层 | Silicone |
| 扎带闭合方式 | IBExU 12ATEX1144U | 接触镀层 | untreated |
| 深度（英寸） | 2.244 inch | 螺钉扭矩 | 2.5 Nm |
| 壁厚 | 4 mm | 宽度（英寸） | 4.921 inch |
| 高度（英寸） | 3.15 inch | 尺寸/外形 | 4.921" L x 3.150" W (125.00mm x 80.00mm) |
| 材料厚度 | 4 mm | 螺纹/螺钉/孔尺寸 | 2 ???New24??? |
| 每次冲击容量 | 7.00 J | 行业认可的配合直径 | 3 |
产品信息
| 类型 | KLIPPON K21 EX | 设计类型 | Cover Included |
| ETIM 6*0 | EC002503 | 产品特性 | Sealed |
| GTIN（EAN） | 4032248019120 | 描述 | The accessory sets contain the necessary mounting material. Necessary on use of 1 hinge per longitudinal side. |
| 应用 | Explosive risk zone, Process industry, Transportation, Packaging industry, Marine engineering, Machine construction, Harbour facilities | 图例（文字） | The colours of painted enclosures may vary under certain circumstances. **Delivery time available on request. |
| 运输信息 | Shipped from Digi-Key | 容器类型 | Box |
| 工程数据 | EPLAN | 固件版本 | Klippon K, Empty enclosure, Aluminium enclosure, Height: 80 mm, Width: 125 mm, Depth: 57 mm, Material: Aluminium AlSi12, untreated, Silver, Silver |
| 技术数据描述文本 | *Please refer to the Terminal Block Catalogue or the SAK Series for more information about populating the enclosures with terminal blocks. We recommend BK 6 or BK 6 CRN (0625220000) for vertical installations. There are no pre-defined mounting points set within this enclosure for installing internal equipment in a vertical position. | ||
环境参数
| 额定等级 | IP66, IP67 | ET（伏秒积） | EC000049 |
| 防护等级 | 27-18-05-02 | 工作温度 | 135 °C |
