点击放大查看

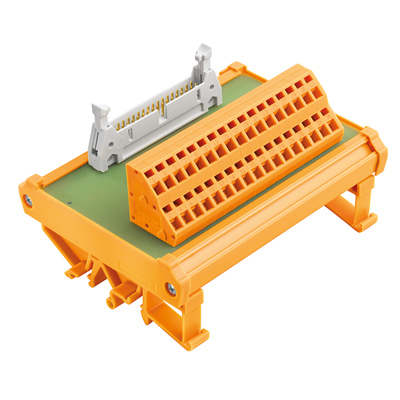

8537150000

制造商	Weidmüller Holding AG & Co. KG
描述	RSF 50 Z -EA INTERFACE UNIT PLG 50 POS 1AMP
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

其他名称

Q5995792

标准包装数量

合规参数

RoHS	Conform	IEC标准	27-14-11-52
标准编号	30-21-18-01	符合性声明	K318_01_11.pdf

电气参数

频率	27-14-11-52	接地方式	No
额定电压	60VAC, 75VDC	极数	50-pole
转折电压	0.8 kV	最小负载要求	0.13 mm²
最小输入电压	100 V	额定电流（每触点）	1A

机械参数

宽度	3.43" (87.00mm)	高度	64 mm
长度	5.71" (145.00mm)	重量	234 g
导线线规	14-24 AWG	柔性强度	1.5 mm²
外壳镀层	1.5 mm²	连接器类型	Tension clamp connection
宽度（英寸）	3.425 inch	高度（英寸）	2.52 inch
长度（英寸）	5.709 inch	承重能力	2.5 mm²
剥线长度（范围）	7.5 mm	位数/极数	50
过程侧连接	Terminal Blocks - Spring Connection	大外径（直径）	2.5 mm²
小外径	0.2 mm²	线规或范围 - AWG	AWG 14
控制侧电缆固定器	Latches

产品信息

类型	RS F50 Z	ETIM 6*0	EC002780
GTIN（EAN）	4032248172801	描述	Refer to the "Universal cables PAC-UNIV" section in chapter F
固件版本	Interface, RSF, Plug-in connector in acc. with IEC60603-13 / DIN41651, 50-pole, Tension clamp connection	其他规格	0.25 mm²
控制侧连接	Rectangular, Male	负载侧连接类型	LM2NZF 5.08mm

环境参数

ET（伏秒积）	EC001419	防护等级	27-24-22-04
工作温度	0°C ~ 55°C	环境防护（如抗紫外线）	2
