1907020000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | TERMINAL DK 4 QV/EN |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-2 |
电气参数
| 电流 - UL | 30A | UL电压 | 300V |
| 电流 - IEC | 32A | IEC电压 | 500V |
机械参数
| 颜色 | Beige | 剥线长度（范围） | 12mm |
| 端子宽度 | 6.5mm | 端接样式 | Screw |
| 位数 | 4 | 绝缘材料 - 材质 | Polyamide (PA66), Nylon 6/6 |
| 线规或范围 - AWG | 10-22 AWG | 线规或范围 - mm² | 0.5-6mm² |
产品信息
| 类型 | Feed Through | 层数 | 2; Connected |
文档与媒体
相关型号
1609820000
weidmuller
Connector Accessories Marker Polyamide White DEK 5/6 MULTI CARD 1000/BX

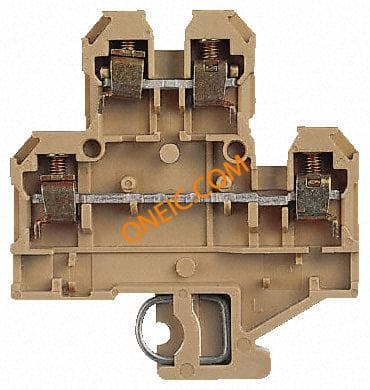

0368600000
weidmuller
Conn Jumper PL 10 POS Screw ST JUMPER FOR DK 4/AKZ 4 10POS Weidmuller 0368600000 Cross Connector Terminal Block, Series: Q
1397160000
weidmuller
Connector Accessories End Plate And Intermediate Plate Polyamide Beige ENDPLATE AP DK 4 QT PA BEIGE

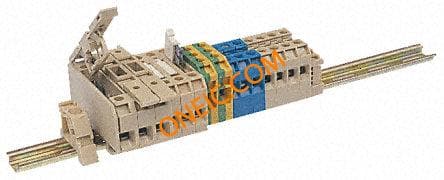

0336500000
