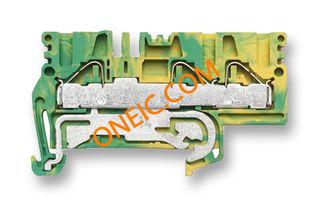

1896200000

制造商	Weidmüller Holding AG & Co. KG
描述	Conn Feed-Thru 3 POS ST TERMINAL PPE 2.5/4/3 AN TERMINAL, PUSH-IN, PPE2.5/4, 3 WAY
分类	连接器解决方案接线端子接线端子与连接器（通用型）

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85369010	材料阻燃等级	UL94 V-0

机械参数

颜色	Green, Yellow	间距	:5.1mm
重量	0.014	导线线规	10-26 AWG
外壳颜色	Green/Yellow	安装类型	Straight
连接器类型	:Terminal Block, DIN Rail	接触镀层	:-
排数	3	触头材料	:-
剥线长度（范围）	12mm	端子宽度	5.1mm
端接样式	Push In, Spring	连接器颜色	:Green / Yellow
触点数	:3	位数	3
绝缘材料 - 材质	Thermoplastic, Wemid	线规或范围 - AWG	10-26 AWG
线规或范围 - mm²	0.5-6mm²	第一连接器安装类型	:DIN Rail

产品信息

类型	Feed-Thru	系列	:-
层数	1	电路数	1

文档与媒体

PDF 文档

Modular Terminal Blocks Catalog

PDF 文档

578410.pdf
