点击放大查看
1788810000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | HDC 04A TWLU 1M20G -EA CONN PLUG HOOD M20 METAL ANG SZ1 HOOD, SIDE ENTRY, M20 |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| SVHC | :No SVHC (20-Jun-2013) | 海关税号 | 76169910 |
机械参数
| 尺寸 | 1 | 重量 | 0.033 |
| 材料（通用） | :Aluminium Die-cast | 包装方式 | Bulk |
| 出线方向 | :Side | 螺纹尺寸 | M20 |
| 外壳颜色 | Gray | 连接器类型 | Hood - 90° |
| 外壳涂层 | Powder Coated | 本体材料 | :Aluminium |
| 壳体材料 | Aluminum, Die Cast | 尺寸/外形 | 1.051" L x 1.051" W x 1.937" H (26.70mm x 26.70mm x 49.20mm) |
| 连接器颜色 | :Grey | 外壳尺寸-插件 | :1 |
产品信息
| 样式 | Side Entry | 锁定位置 | Central Locking Clip on Base Bottom |
| 附件类型 | :Hood | 测量范围 | :1 |
| 适用产品/相关产品 | :RockStar Heavy Duty Connectors | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | :+125°C |
文档与媒体
相关型号
1650570000
weidmuller
Conn Heavy-Duty Rectangular M 7 POS Crimp ST Cable Mount CONN MALE INSERT HD SIZE 1 7POS INSERT MALE 7POS+1GND CRIMP
1498100000
weidmuller
HDC HA 3 MS -EA CONN MALE INSERT HA SIZE 1 3POS INSERT, MALE, 3POLE
1912460000
weidmuller
Conn Heavy-Duty Rectangular F 5Signal/1Ground POS Crimp ST Panel Mount CONN FMALE INSERT HQ 5POS SIZE 1
1498200000
weidmuller
HDC HA 3FS -EA CONN FMALE INSERT HA SIZE 1 3POS Conn Rectangular F 3 POS Screw Cable Mount INSERT, FEMALE, 3POLE
1650590000
weidmuller
HDC HD 8 MC -EA CONN MALE INSERT HD SIZE 1 8POS
1912440000
weidmuller
Conn Heavy-Duty Rectangular M 5Signal/1Ground POS Crimp ST Panel Mount CONN MALE INSERT HQ 5POS SIZE 1
1498300000
weidmuller
Conn Rectangular M 4 POS Screw ST Panel Mount CONN MALE INSERT HA SIZE 1 4POS INSERT, MALE, 4POLE
1498400000
weidmuller
Conn Rectangular F 4Signal/1Ground POS Screw ST Panel Mount CONN FMALE INSERT HA SIZE 1 4POS INSERT, FEMALE, 4POLE
1650580000
weidmuller
Conn Heavy-Duty Rectangular F 7 POS Crimp ST Cable Mount CONN FMALE INSERT HD SIZE 1 7POS INSERT FEMALE 7POS+1GND CRIMP
1650600000
weidmuller
HDC HD 8 FC -EA CONN FMALE INSERT HD SIZE 1 8POS
1665750000
weidmuller
HDC 04A DMDL 2BO -EA CONN COVER FMALE INSERT HA SIZE1
1665740000
weidmuller
HDC 04A DODL 2BO -EA CONN COVER MALE INSERT HA SIZE 1
1650584444
Weidmuller
CONN FMALE INSERT HD SIZE 1 7POS
1650574444
Weidmuller
CONN MALE INSERT HD SIZE 1 7POS

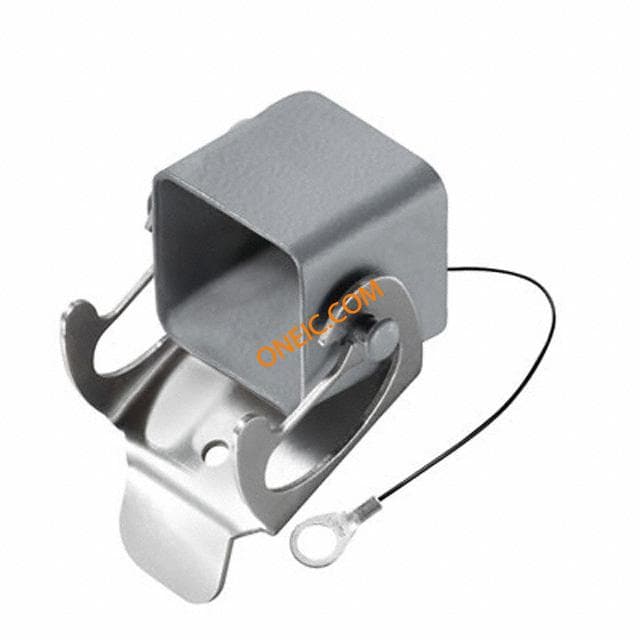

1963690000
