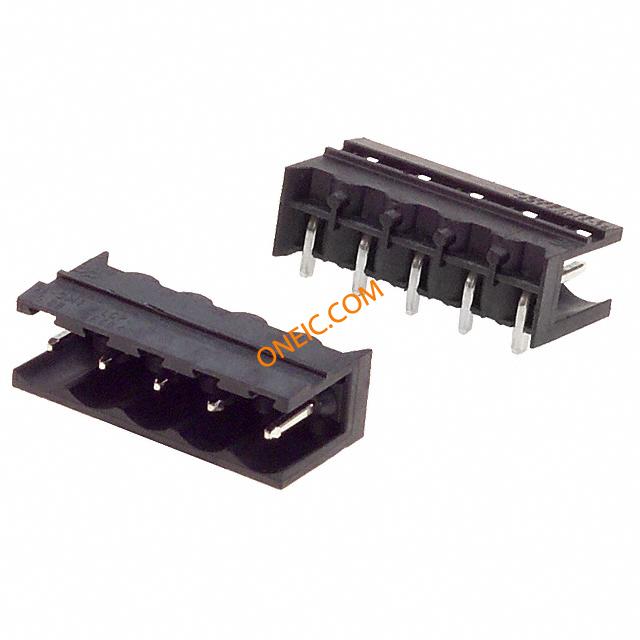

点击放大查看
1774792001
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Shrouded Header M 5 POS 5.08mm Solder RA Thru-Hole Box TERM BLOCK HDR 5POS R/A 5.08MM HEADER. R/A, 5.08MM, 5WAY |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366990 | ||
电气参数
| 电流 | 10A | 电压 | 300V |
| 量程（°/s） | :WEIDMULLER - SL-SMT 5.08 Series | 额定电压 | :300V |
| 最大额定电流 | :10A | 绝缘电阻 | :1Mohm |
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 重量 | 0.01 | 包装方式 | Bulk |
| 端接方式 | Solder | 引脚间距 | :5.08mm |
| 安装类型 | Through Hole | 接触镀层 | Tin |
| 排数 | 1 | 触头材料 | :Copper |
| 连接器颜色 | :Black | 排针方向 | 90°, Right Angle |
| 触点数 | 5 | 接触件端接 | :Solder |
| 位数 | 5 | 接线端子类型 | Header, Male Pins, Shrouded (2 Side) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | M |
| 层数 | 1 | 每层位数 | 5 |
环境参数
| 工作温度 | :100°C | ||
