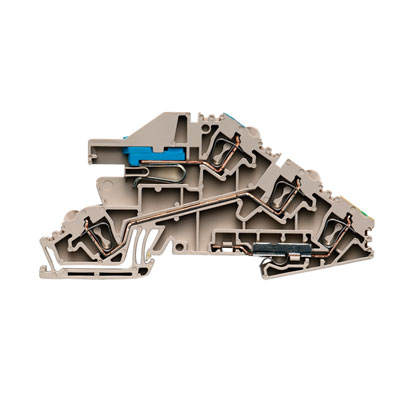

1720750000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Modular Terminal Blocks 5 POS ST 10A CONN TERM BLOCK DIN RAIL WM BG |
| 分类 |
商业参数
| 其他名称 | ZDL 2.5/S/NT/L/ | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | IEC 60947-7-1 (-7-2) |
| 合规性 | E60693 | 防护类型 | Yes |
| IEC标准 | 27-14-11-25 | 认证 | 154685-1142891 |
| 标准编号 | 30-21-18-11 | 符合性声明 | DE_PT1103_20160418_1124_ISSUE01.pdf |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 频率 | 27-14-11-25 | 量程（°/s） | 4 mm² |
| 电流 - UL | 15A | UL电压 | 300V |
| 电流 - IEC | 24A | IEC电压 | 400V |
| 额定电压 | 400 V | 导体绞线 | 26 AWG |
| 输出电流 | 10 A | 元件数量 | 1 |
| 最大额定电流 | 24 A | 绝缘电阻 | 2.66 mΩ |
| 输出数量与类型 | 3 | 击穿电压（V(BR)GSS） | 4 kV |
| 器具输入插座额定电压 | 300 V | ||
机械参数
| 深度 | 48 mm | 宽度 | 5.1 mm |
| 高度 | 95 mm | 长度 | 3.740" (95.00mm) |
| 重量 | 14.72 g | 材料（通用） | Wemid |
| 导线类型 | 2.5 mm² | 刀片尺寸 | 0.6 x 3.5 mm |
| 导线线规 | 12-26 AWG | 端部特征 | Yes |
| 高度（最大） | 1.909" (48.50mm) | 开口尺寸 | right |
| 外壳颜色 | Dark Beige | 安装类型 | Straight |
| 连接器类型 | Tension clamp connection | 深度（英寸） | 1.89 inch |
| 安装导轨 | TS 35 | 排数 | 4 |
| 宽度（英寸） | 0.201 inch | 高度（英寸） | 3.74 inch |
| 剥线长度（范围） | 8mm | 端子宽度 | 5.1mm |
| 端接样式 | Special Clamp, Push-In Spring | 线规 - 端部 | 26 AWG |
| 连接器颜色 | Dark Beige | 触点数 | 5 |
| 交叉孔直径 | 0.5 mm² | 位数 | 5 |
| 绝缘材料 - 材质 | Thermoplastic, Wemid | 线规或范围 - AWG | 12-26 AWG |
| 线规或范围 - mm² | 0.5-4mm² | 每排/每行位置数 | 2 |
产品信息
| 外形 | 10 x 3 mm | 类型 | Modular Terminal Blocks |
| ETIM 6*0 | EC001329 | 方向 | Inclined / angled |
| GTIN（EAN） | 4008190380359 | 工程数据 | EPLAN |
| 固件版本 | 3-conductor installation terminal, Tension-clamp connection, With PE connection, with busbar connection 10x3, for plug-in cross-connector, One end without connector | 层数 | 3; 1 Grounded |
| 安装类型 | Direct mounting | 电路数 | 2 |
| 独立电路数 | No | 其他规格 | No |
| 转换前位置数 | 5 | ||
