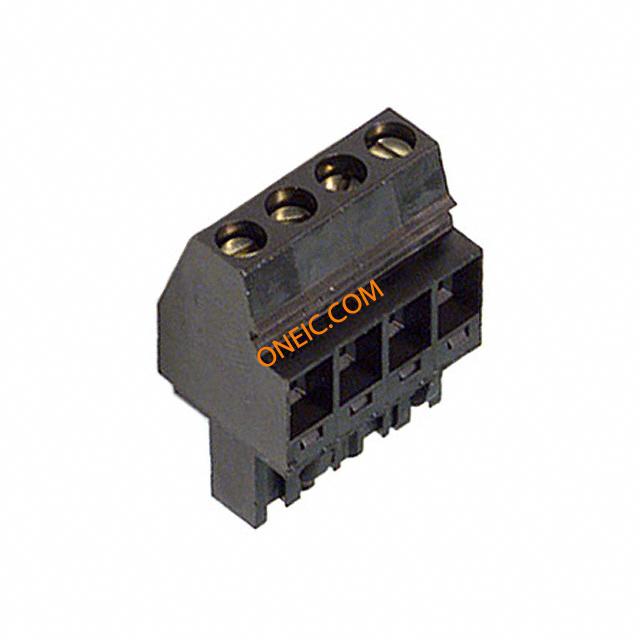

点击放大查看
1636910000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Terminal Block SKT 4 POS 5mm Screw ST Cable Mount 15A Box TERM BLOCK PLUG 4POS 90DEG 5MM |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 抗辐射加固 | No |
电气参数
| 电流 | 10A | 电压 | 300V |
| 最大额定电流 | 15 A | 最小供电电压 | 300V |
机械参数
| 颜色 | Black | 深度 | 26.9 mm |
| 间距 | 5 mm | 高度 | 14 mm |
| 包装方式 | Bulk | 导线线规 | 12-22 AWG |
| 端接方式 | Screw | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 接触镀层 | Tin |
| 安装样式 | Cable | 排数 | 1 |
| 插头进线方向 | 90° | 触头材料 | Copper Alloy |
| 总长度 | 20 mm | 触点数 | 4 |
| 位数 | 4 | 接线端子类型 | Plug, Female Sockets |
产品信息
| 类型 | Terminal Block | 连接器性别 | SKT |
| 产品特性 | Retention Latches (Wire Side) | 层数 | 1 |
| 每层位数 | 4 | ||
环境参数
| 工作温度 | -25C to 100C | ||
