点击放大查看

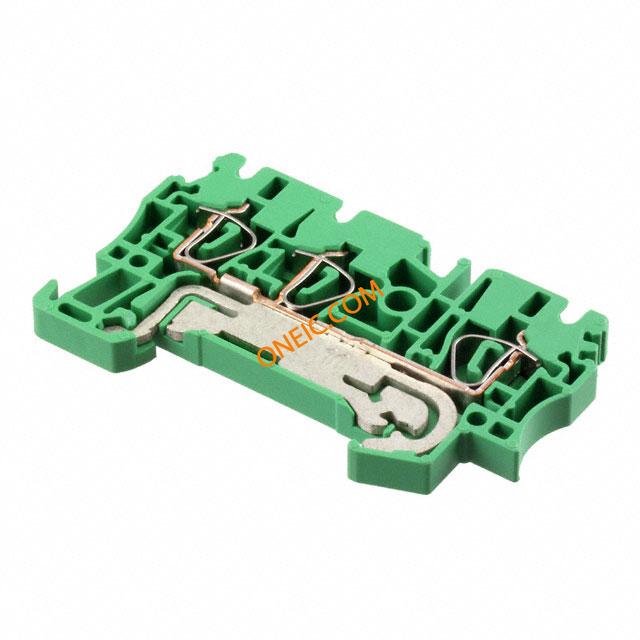

1608650000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Terminal Block 3 POS Screw TERM GND BRANCH 2.5MM WM GN/YLW Non-Fuse DIN Rail Terminal, 800V, Green/Yellow ,Clamp Termination |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 800 V | ||
机械参数
| 颜色 | Green, Yellow | 导线线规 | 30 → 12 AWG |
| 端接方式 | Screw | 外壳颜色 | Yellow/Green |
| 排数 | 3 | 剥线长度（范围） | 10mm |
| 端子宽度 | 5.1mm | 端接样式 | Push In, Spring |
| 连接器颜色 | Green/Yellow | 位数 | 3 |
| 绝缘材料 - 材质 | Thermoplastic, Wemid | 线规或范围 - AWG | 12-30 AWG |
| 线规或范围 - mm² | 0.5-4mm² | ||
产品信息
| 类型 | Terminal Block | 系列 | ZPE |
| 层数 | 1 | ||
文档与媒体
相关型号
1636530000
weidmuller
Connector Accessories Marking Tag Polyamide 66 White ZGB 15
1792000000
weidmuller
WS 10/5 MC MIDDLE NEUTRAL -BX = 720 EA TERMINAL MARKER WS 10/5 MC Inkjet Printer Multi Card Markers
TMS-SCE-3/8-2.0-4
te connectivity / raychem wire
Cable Accessories Marker Sleeve Polyolefin Yellow Wire Identification HS-SLEEVE 3/8 YW PRICE PER PC Wire & Harness ID Products HEAT SHRINK SLEEVE Yellow hi-spec military marker,9.5mm i/d Cable Markers Cross Linked Polyolefin Yellow Pack Cable Markers Cross Linked Polyolefin Yellow Pack Product Highlights:TMS-SCE SeriesMarker SleeveMilitary GradeRadiation Cross-Linked Polyolefin MaterialShrink Ratio = 3:1 MARKER, HEATSHRINK, HIGH SPEC GRADE Yellowhi-specmilitarymarker,9.5mmi/d TE Connectivity TMS-SCE 系列 热收缩电缆标识

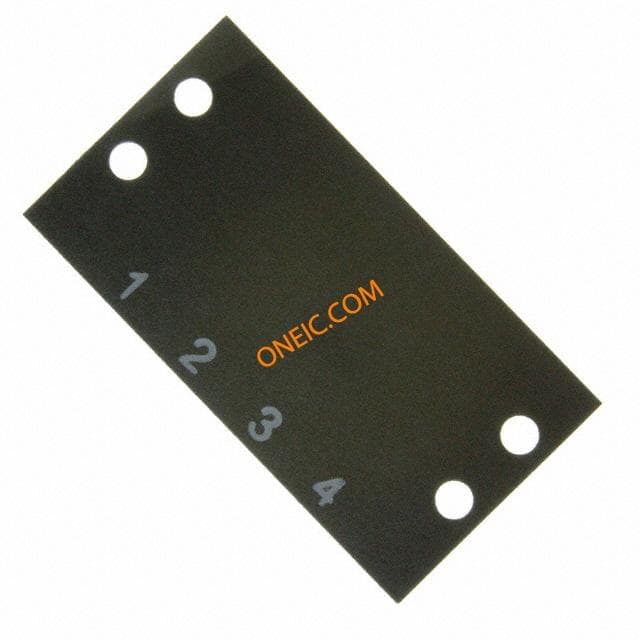

MS-4-141
