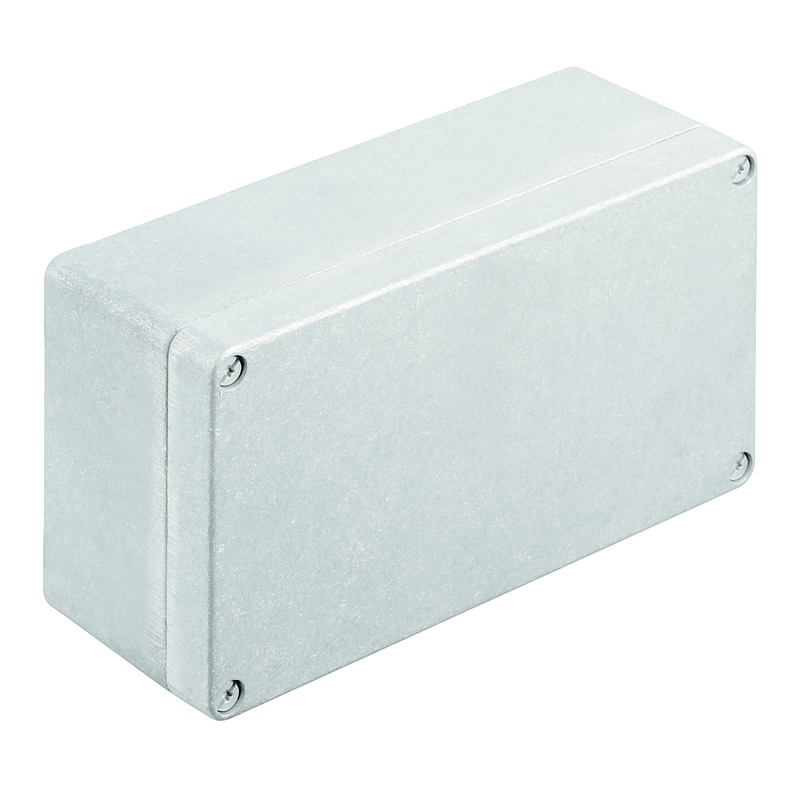

1565280000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | K51, ENCLOSURE, AL,EARTH SCR -EA ENCLOSURE SAFETY GND SCREW ALUM |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Conform | 防护类型 | IP68 (t=72h, h=1m) |
| IEC标准 | 27-18-92-90 | 认证 | E197061 |
| 认证机构 | 14.40040.250 | 标准编号 | 31-26-15-02 |
| 保护特性 | IP66, IP67, IP68, NEMA 4, NEMA 4x | 认证机构标志 | 44536-07 |
电气参数
| 频率 | 27-14-91-07 | 连接器阻抗 | M6 torx stainless steel screws with slot |
| 连接器类型 - 电压输入 | 1x15 | ||
机械参数
| 颜色 | Unpainted | 深度 | 81 mm |
| 宽度 | 220 mm | 高度 | 3.189" (81.00mm) |
| 重量 | 3.1 lbs (1.4kg) | 材料（通用） | Metal, Aluminum |
| 外壳样式 | left, right | 面积（长x宽） | 40.9" (264cm) |
| 安装类型 | Holes 6 mm | 外壳镀层 | Neoprene |
| 接触镀层 | untreated | 深度（英寸） | 3.189 inch |
| 壁厚 | 4.5 mm | 宽度（英寸） | 8.661 inch |
| 高度（英寸） | 4.724 inch | 尺寸/外形 | 8.661" L x 4.724" W (220.00mm x 120.00mm) |
| 材料厚度 | 4.5 mm | 螺纹/螺钉/孔尺寸 | 5 ???New24??? |
| 每次冲击容量 | 10.00 J | 行业认可的配合直径 | 8 ???New24??? |
产品信息
| 类型 | KLIPPON K51 | 设计类型 | Cover Included |
| ETIM 6*0 | EC000261 | 产品特性 | Sealed |
| GTIN（EAN） | 4008190144524 | 描述 | The accessory sets contain the necessary mounting material. Necessary on use of 2 hinges per longitudinal side. |
| 应用 | Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction | 图例（文字） | The colours of painted enclosures may vary under certain circumstances. **Delivery time available on request. |
| 运输信息 | Shipped from Digi-Key | 容器类型 | Box |
| 工程数据 | EPLAN | 固件版本 | Klippon K, Empty enclosure, Aluminium enclosure, Height: 120 mm, Width: 220 mm, Depth: 81 mm, Material: Aluminium AlSi12, untreated, Silver, Silver |
| 其他规格 | 3 | 技术数据描述文本 | The mounting rails are designed to be installed directly.Assembly with terminals provides for 10 mm clearance to the ends of the mounting rail.Ordering recommendations:TS 35 mounting rail (screw-type terminals) WDU 2.5 1020000000 / (tension clamp terminals) ZDU 2.5 1608510000*For fitting the enclosures with terminal blocks, please refer to the Terminal block catalogue or the SAK series. We recommend BK 6 or BK 6 CRN (0625220000) for vertical installations. There are no pre-defined mounting points set within this enclosure for installing internal equipment in a vertical position. |
环境参数
| 额定等级 | IP66, IP67 | ET（伏秒积） | EC000058 |
| 防护等级 | 27-14-91-07 | 工作温度 | 85 °C |
