点击放大查看

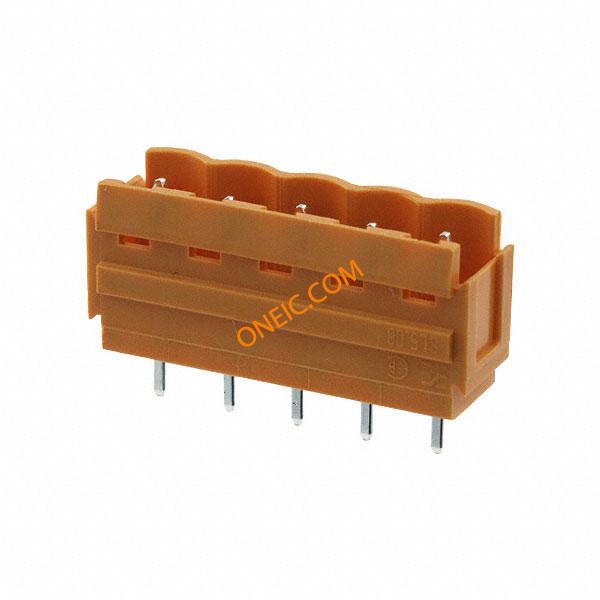

1524460000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Wire to Board HDR 5 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 5POS VERT 5.08MM Weidmuller SL Series 5.08mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 15A |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15A |
机械参数
| 颜色 | Orange | 间距 | 5.08 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Through Hole | 排数 | 1 |
| 排针方向 | Vertical | 触点数 | 5 |
| 位数 | 5 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | SL | 产品特性 | Side Stacking (Interlocking) |
| 层数 | 1 | 每层位数 | 5 |
