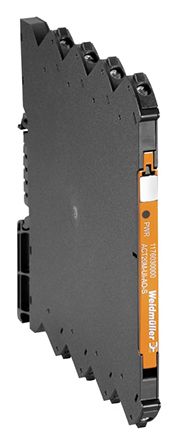

点击放大查看
1176040000
| 制造商 | |
| 描述 | Signal Isolator/ Splitter (2-Wire System) Is Supplied Via The Output Current Loop And Has An Analogue DC Current Input SIGNAL CONVERTER/DISCONNECTOR DIN Rail 接口继电器模块, 4 → 20mA |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Conform | 标准 | IEC 61010-1 |
| IEC标准 | 27-21-01-20 | IEC 61000-4-2 | IEC 61326-1, NE 21 |
| 认证机构 | ATEX-KEMA，cULus，DNV，EAC，FM 认证，IECEx-KEMA，ME25 | 安全类别 | KEMA10ATEX0183X |
| 认证机构标志 | IECEXKEM10.0090X | 符合性声明 | Declaration of Conformity |
电气参数
| 传感器 | Current source | 精度 | < 0.05 % of measuring range |
| 频率 | 100 Hz | 隔离 | 2-way isolator |
| 量程（°/s） | 0.5 mm² | 电流 - UL | E337701.pdf |
| 负载电流 | ≤ 600 Ω (channel 1 +2), @ max 23mA | 响应时间 | ≤ 5 ms |
| 额定电压 | 300 Veff | 输出电流 | 4...20 mA |
| 供电电压 | Output loop powered | 输出数量 | 1 |
| 击穿电压 | 2.5 kVeff / 1 min. | 输入偏置电流 | 4…20mA |
| 最大额定电流 | 4 → 20mA | 频率 - 输出3 | 100 Hz |
| 最小输入电压 | Typical 2.5 V | 空载功耗 | 30 mW per channel |
| 输入偏置电流（最大） | 4 → 20mA | ||
机械参数
| 深度 | 114.3 mm | 宽度 | 6.1 mm |
| 高度 | 112.5 mm | 长度 | 6.1mm |
| 重量 | 80 g | 导线线规 | 2.5 mm² |
| 安装类型 | DIN Rail | 连接器类型 | Screw connection |
| 深度（英寸） | 4.5 inch | 安装导轨 | TS 35 |
| 宽度（英寸） | 0.24 inch | 高度（英寸） | 4.429 inch |
| 包装数量 | instruction sheet.pdf | 尺寸/外形 | 6.1 x 114.3 x 112.5mm |
| 端接样式 | 螺丝 | ||
产品信息
| 类型 | ACT20M-CI-CO-OLP-S | 系列 | * |
| ETIM 6*0 | EC002653 | 产品特性 | 切断频率高达 100 Hz，无源隔离器，步进响应时间 ≤5 ms |
| GTIN（EAN） | 4032248970155 | 描述 | DIN mounting rail, see Accessories |
| 产品子类型 | The passive isolator ACT20M-CI-CO-OLP-S isolates standard analogue current signals. An analogue input current signal is linearly converted into an analogue output current signal and is galvanically isolated. Power is supplied through the output measuring circuit (output loop-powered). | 配置 | none |
| 规格说明 | Standard signal isolating amplifier1-channel signal isolating amplifier in 6.1 mm width output-loop powered,for transmitting and isolating analogue DC current signals 0/4...20 mA.Add-on housing for TS35 rail mountingDimensions: L/W/H 114.3/ 6.1/ 112.5 mmScrew connection / Nominal cross-section 2.5 mm2Protection degree: IP 20 Input 0/4...20 mAOutput 0/4...20 mALoad resistance < 600 OhmTransmission error < 0,1 % v. E. Limit frequency 100 HzAuxiliary power 0/4...20 mA output current loopPower loss approx. 0.9 WAmbient temperature range -25 °C...+70 °C Isolation EN 61010-1, 2-way isolation up to 2.5 kV AC/DCTest voltage 2.5 kV input against output against auxiliary powerRated voltage 300 V AC/DC at overvoltage category II and pollution degree 2Approvals cULus, FM Div2, ATEX Zone2, DNV, GLType ACT20M-CI-CO-OLP-S | 工程数据 | EPLAN |
| 固件版本 | Signal converter/insulator, Output current loop powered, 2-way isolator, Output loop powered | 其他规格 | Typical 2.5 V |
| 技术数据描述文本 | Power supply optionally over the DIN mounting rail CH20M | ||
环境参数
| 温度 | -25 °C...+70 °C | ET（伏秒积） | EC002479 |
| 湿度范围 | 40 °C / 93 % rel. humidity, no condensation | 防护等级 | 2 |
| 工作温度 | -25 °C...70 °C | 温度系数 | ≤±0.02 µA x (Δ °C x V supply) @ Tamb > 25 °C |
| 最高温度限值 | +70°C | ||
