1041960000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | WDK 4N OR -EA TERMINAL WDK 4N ORANGE |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 35A | UL电压 | 600V |
| 电流 - IEC | 32A | IEC电压 | 800V |
机械参数
| 颜色 | Orange | 剥线长度（范围） | 8mm |
| 端子宽度 | 6.1mm | 端接样式 | Screw |
| 位数 | 4 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 10-26 AWG | 线规或范围 - mm² | 0.5-6mm² |
产品信息
| 类型 | Feed Through | 层数 | 2 |
文档与媒体
相关型号
1758250000
weidmuller
Conn Pluggable Jumper PL 2 POS 6.1mm ST CONN JUMPER TERM BLOCK 6.0MM TERMINAL BLOCK JUMPER, 2WAY, 6.1MM Comb bridge; Application: ZDU4
1758260000
weidmuller
Conn Jumper M 10 POS 6.1mm ST CONN JUMPER TERM BLOCK 6.0MM TERMINAL BLOCK JUMPER, 10WAY, 6.1MM Comb bridge; Application: ZDU4 Comb bridge; Application: WDU4; ways:10
1609820000
weidmuller
Connector Accessories Marker Polyamide White DEK 5/6 MULTI CARD 1000/BX
1762620000
weidmuller
Conn Jumper 4 POS Screw ST CONN JUMPER TERM BLOCK 6.0MM Comb bridge; Application: ZDU4 Comb bridge; Application: WDU4; ways:4

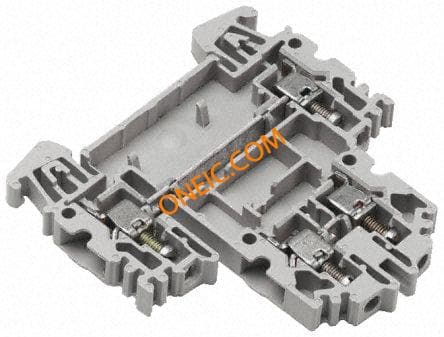

1084000000
weidmuller
WAP/WDK 2.5/4N -EA TERMINAL END PLATE 1.5MM DRK BGE Weidmuller 1084000000 End Plate Terminal Block, Series: W Feed Through Terminals END PLATE, W SERIES MODULAR TERMINAL
1084080000
weidmuller
WAP/WDK 2.5/4N, BL -EA TERMINAL END PLATE 1.5MM BLUE

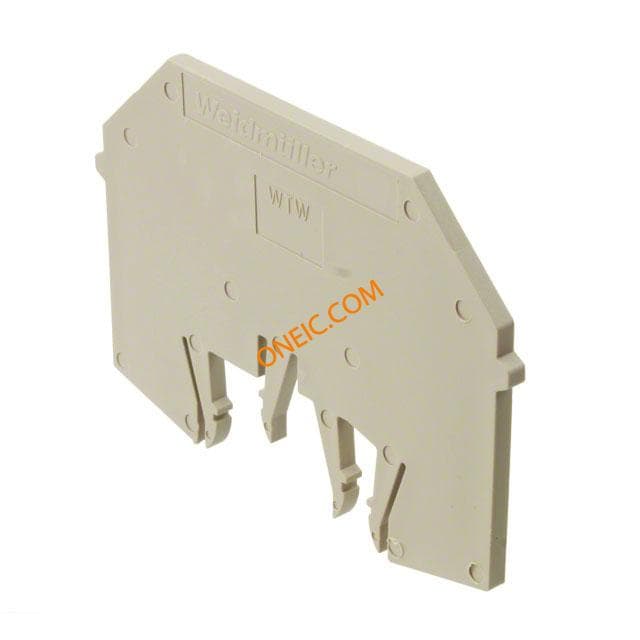

1058800000
