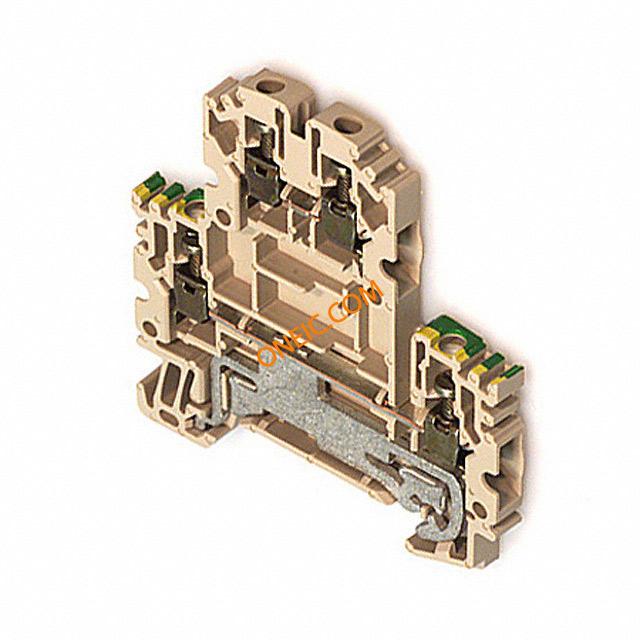

1041650000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Feed-Thru 4 POS Screw ST 20A CONN BLOCK TERMINAL GROUND 5MM TERMINAL BLOCK, DIN RAIL, 4POS, 22-12AWG |
| 分类 |
商业参数
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 20A | UL电压 | 600V |
| 电流 - IEC | 24A | IEC电压 | 800V |
机械参数
| 颜色 | Beige | 重量 | 0.014 |
| 导线线规 | 12-30 AWG | 端接方式 | Screw |
| 外壳颜色 | Dark Beige | 安装类型 | Straight |
| 连接器类型 | :DIN Terminal Block | 接触镀层 | :- |
| 排数 | 4 | 触头材料 | :- |
| 剥线长度（范围） | 8mm | 端子宽度 | 5.1mm |
| 端接样式 | Screw | 触点数 | :4 |
| 位数 | 4 | 绝缘材料 - 材质 | Thermoplastic, Wemid |
| 线规或范围 - AWG | 12-30 AWG | 线规或范围 - mm² | 0.5-4mm² |
| 第一连接器安装类型 | :DIN Rail | ||
产品信息
| 类型 | Feed-Thru | 系列 | :W |
| 层数 | 2; 1 Grounded | 电路数 | 2 |
文档与媒体
相关型号
1084000000
weidmuller
WAP/WDK 2.5/4N -EA TERMINAL END PLATE 1.5MM DRK BGE Weidmuller 1084000000 End Plate Terminal Block, Series: W Feed Through Terminals END PLATE, W SERIES MODULAR TERMINAL
1084080000
weidmuller
WAP/WDK 2.5/4N, BL -EA TERMINAL END PLATE 1.5MM BLUE

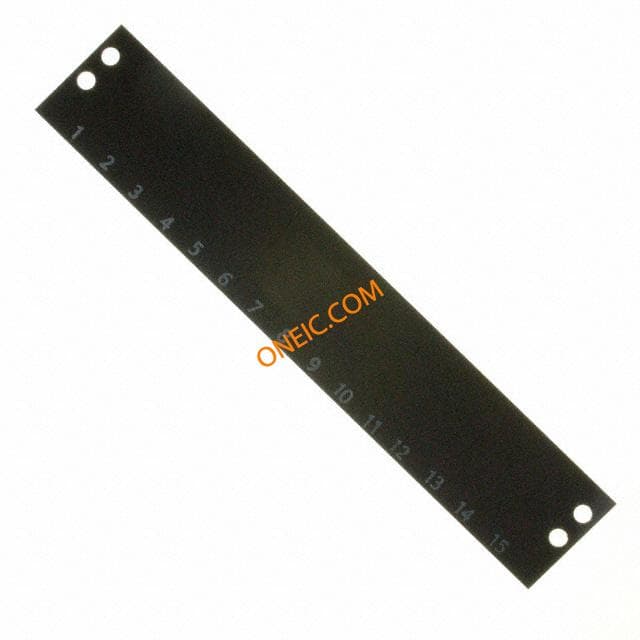

MS-15-140
