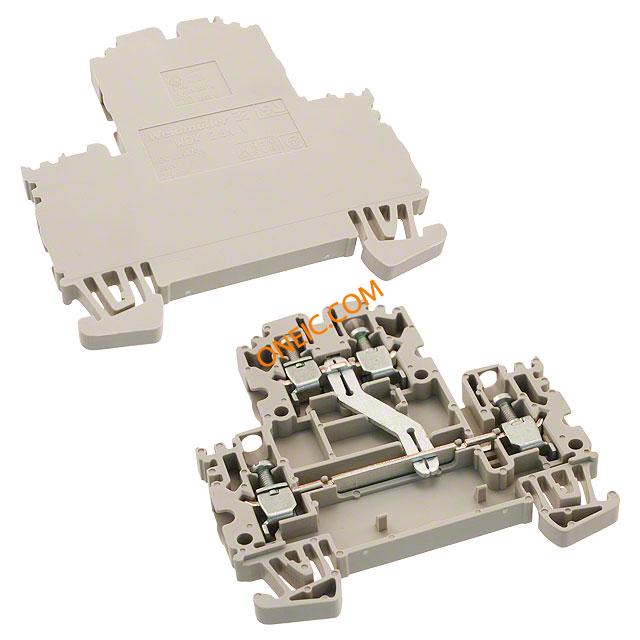

1041610000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Feed-Thru 4 POS Screw ST 20A CONN TERM BLOCK FEED THRU 5MM |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 20A | UL电压 | 600V |
| 电流 - IEC | 24A | IEC电压 | 800V |
机械参数
| 颜色 | Beige | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 外壳颜色 | Dark Beige |
| 安装类型 | Straight | 排数 | 4 |
| 剥线长度（范围） | 8mm | 端子宽度 | 5.1mm |
| 端接样式 | Screw | 位数 | 4 |
| 绝缘材料 - 材质 | Thermoplastic, Wemid | 线规或范围 - AWG | 12-30 AWG |
| 线规或范围 - mm² | 0.5-4mm² | ||
产品信息
| 类型 | Feed-Thru | 层数 | 2; Connected |
| 电路数 | 2 | ||
