点击放大查看

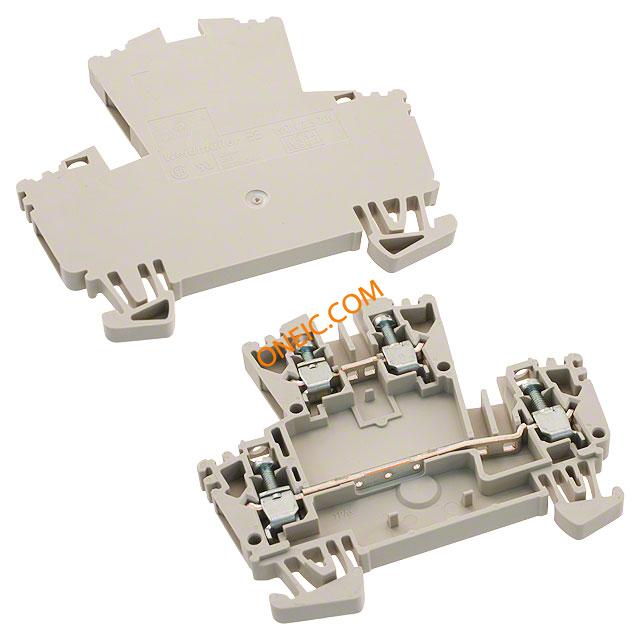

1041100000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Feed-Thru 4 POS Screw ST 20A CONN TERM BLOCK FEED THRU 5MM Non-Fuse DIN Rail Terminal, 32A, 400V, Beige ,Screw Down Termination |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 20A | UL电压 | 300V |
| 电流 - IEC | 24A | IEC电压 | 400V |
| 额定电压 | 400 V | 最大额定电流 | 32A |
机械参数
| 颜色 | Beige | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 外壳颜色 | Dark Beige |
| 安装类型 | Straight | 排数 | 4 |
| 剥线长度（范围） | 10mm | 端子宽度 | 5.1mm |
| 端接样式 | Screw | 连接器颜色 | Beige |
| 位数 | 4 | 绝缘材料 - 材质 | Thermoplastic, Wemid |
| 线规或范围 - AWG | 12-30 AWG | 线规或范围 - mm² | 0.5-4mm² |
产品信息
| 类型 | Feed-Thru | 系列 | WDK |
| 层数 | 2 | 电路数 | 2 |
环境参数
| 工作温度 | +120°C | ||
文档与媒体
