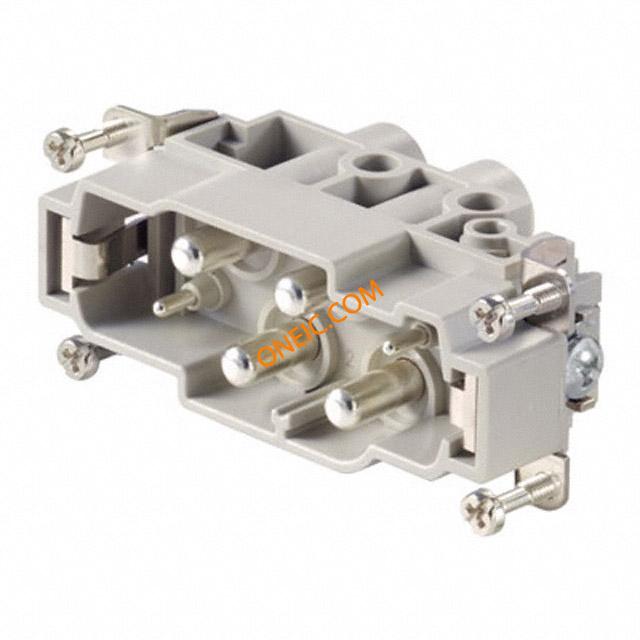

1023240000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | CONN INSERT MALE SIZE 6 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 80A |
机械参数
| 尺寸 | 6 | 包装方式 | Bulk |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 触头材料 | Copper Alloy | 壳体材料 | Polycarbonate (PC), Glass Filled |
| 端接样式 | Screw | 位数 | 4+2+Ground |
产品信息
| 连接器性别 | Male | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
