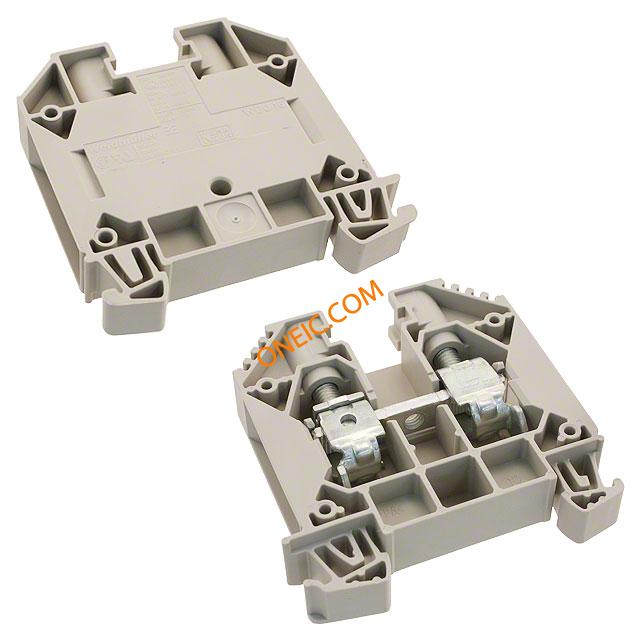

1020400000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Feed-Thru 2 POS Screw ST 85A CONN TERM BLOCK FEED THRU 12MM Non-Fuse DIN Rail Terminal, 101A, 1000V, Beige ,Screw Down Termination TERMINAL BLOCK, DIN RAIL, 2POS, 14-4AWG |
| 分类 |
商业参数
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85359000 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 85A | UL电压 | 600V |
| 电流 - IEC | 76A | IEC电压 | 1000V |
| 额定电压 | 1000 V | 最大额定电流 | 101A |
机械参数
| 颜色 | Beige | 重量 | 0.027 |
| 导线线规 | 4-18 AWG | 端接方式 | Screw |
| 外壳颜色 | Dark Beige | 安装类型 | Straight |
| 连接器类型 | :DIN Terminal Block | 接触镀层 | :- |
| 排数 | 2 | 触头材料 | :- |
| 剥线长度（范围） | 16mm | 端子宽度 | 11.9mm |
| 端接样式 | Screw | 连接器颜色 | Beige |
| 触点数 | :2 | 位数 | 2 |
| 绝缘材料 - 材质 | Thermoplastic, Wemid | 线规或范围 - AWG | 6-14 AWG |
| 线规或范围 - mm² | 1.5-16mm² | 第一连接器安装类型 | :DIN Rail |
产品信息
| 类型 | Feed-Thru | 系列 | WDU |
| 层数 | 1 | 电路数 | 1 |
环境参数
| 工作温度 | +120°C | ||
相关型号
0299600000
weidmuller
Conn Test Plug PL 1 POS ST 1 Port PLUG TEST PS4 4.0MM SOCKET
0140200000
weidmuller
STB 16 FOR SAK 35/35N,SAKB 1 -EA ENCLOSURE STB16 FOR SAK 35/N/B1

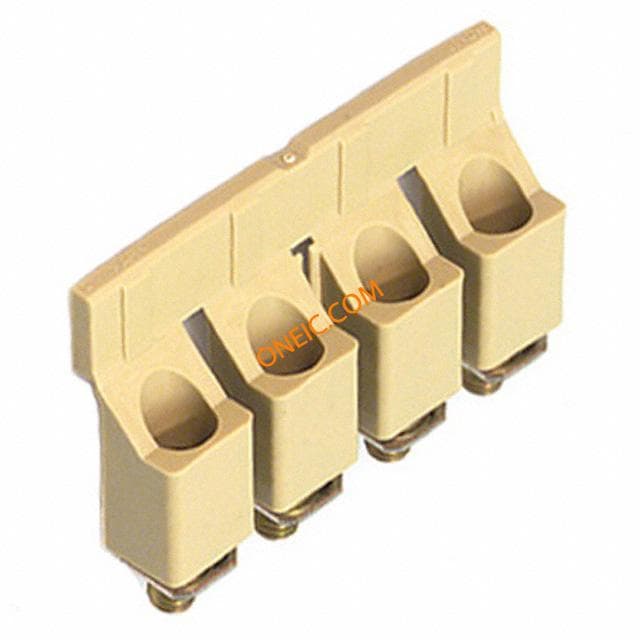

1055260000
weidmuller
Conn Jumper M 4 POS 12mm Screw ST CONN JUMPER TERM BLOCK 12.0MM
1050180000
weidmuller
Connector Accessories End Plate Wemid Blue/Light Blue ENDPLATE WTW 2.5-10 WM BLUE End/partition plate; Application: WDU; blue; max.125°C

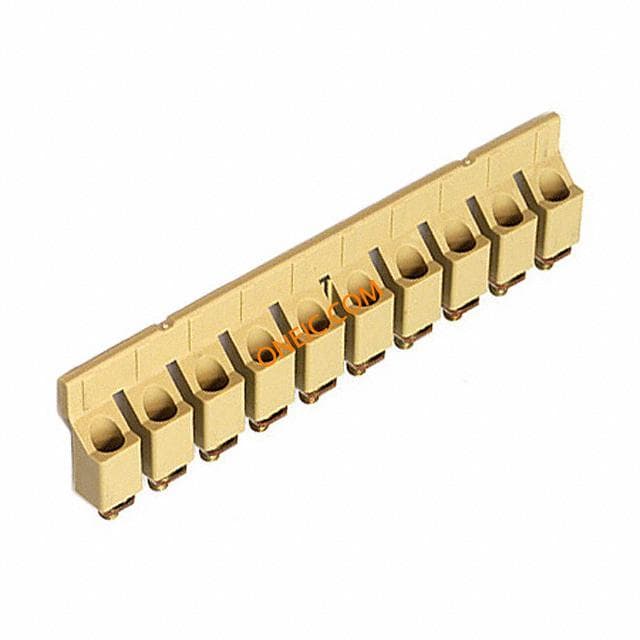

1053360000
weidmuller
Conn Jumper M 10 POS ST CONN JUMPER TERM BLOCK 12.0MM Weidmuller 1053360000 Cross Connector Terminal Block, Series: WQV

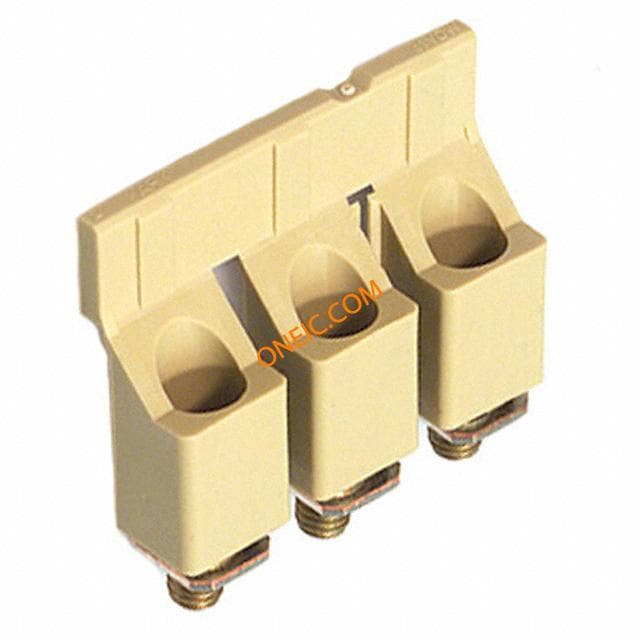

1055160000
weidmuller
Conn Jumper M 3 POS 12mm ST CONN JUMPER TERM BLOCK 12.0MM
1609801044
weidmuller
Fuse Terminal Block 15A 500V Screw DIN Rail DEK 5/5 MULTI CARD 1000/BX TERMINAL BLOCK MARKER, 5MM, WHT, MULTICARD 1000
1609920000
weidmuller
Connector Accessories Connector Marker Polyamide White TAG MARKER 12X6.5MM WHT 540/BX WS 12/6,5 MULTICARD TERMINAL MARKER, 540 PC(S)

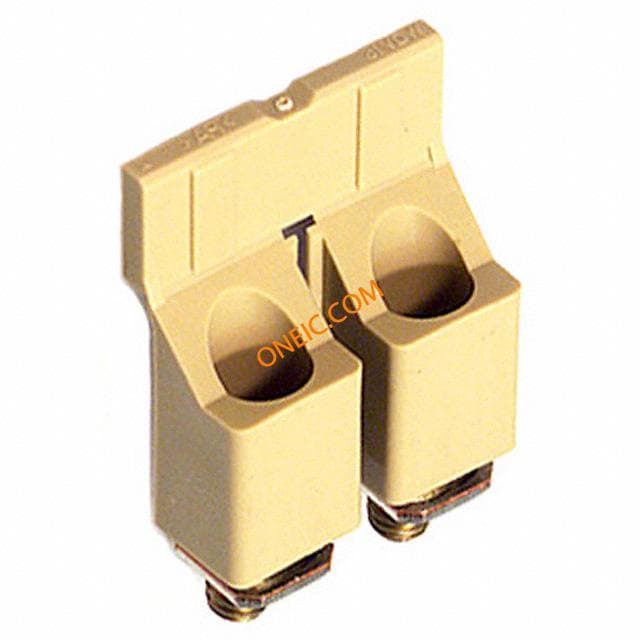

1053260000
weidmuller
Conn Jumper M 2 POS 12mm Screw ST CONN JUMPER TERM BLOCK 12.0MM

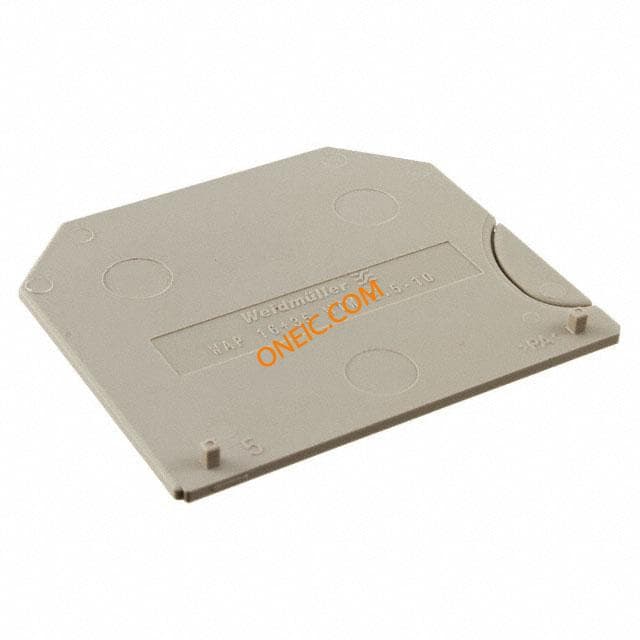

1050100000
