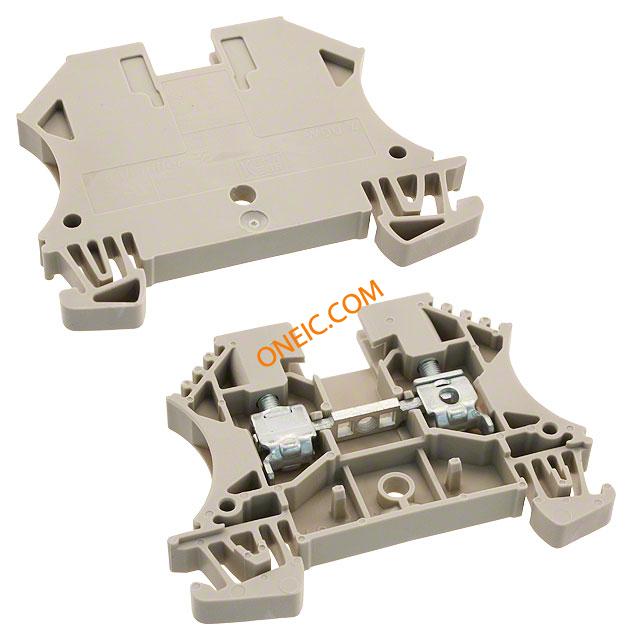

1020100000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Feed-Thru 2 POS Screw ST Cable Mount 32A CONN TERM BLOCK FEED THRU 6MM WDU 4 standard terminal,32A,BP Non-Fuse DIN Rail Terminal, 41A, 800V, Beige ,Screw Down Termination TERMINAL BLOCK, DIN RAIL, 2POS, 26-10AWG Splice terminal: rail; ways:1; terminals:2; beige; 4mm2; wemid |
| 分类 |
商业参数
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 35A | UL电压 | 600V |
| 电流 - IEC | 32A | IEC电压 | 800V |
| 额定电压 | 800 V | 极数 | 1 |
| 连接器阻抗 | rail | 最大额定电流 | 41A |
| 最小供电电压 | 800V | ||
机械参数
| 颜色 | Beige | 深度 | 6.1 mm |
| 间距 | Not Required mm | 宽度 | 6.1mm |
| 高度 | 47 mm | 重量 | 0.009 |
| 导线线规 | 10-26 AWG | 端接方式 | Screw |
| 基体材料 | wemid | 外壳颜色 | Dark Beige |
| 安装类型 | Cable Mount | 连接器类型 | :DIN Terminal Block |
| 接触镀层 | :- | 安装导轨 | TS35 |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | :- | 壳体材料 | Wemid |
| 总长度 | 60 mm | 包装数量 | 100 |
| 剥线长度（范围） | 10mm | 端子宽度 | 6.1mm |
| 端接样式 | Screw | 连接器颜色 | Beige |
| 触点数 | 2 | 位数 | 2 |
| 最大电缆长度 | 4mm2 | 绝缘材料 - 材质 | Thermoplastic, Wemid |
| 线规或范围 - AWG | 10-26 AWG | 线规或范围 - mm² | 0.5-6mm² |
| 第一连接器安装类型 | :DIN Rail | ||
产品信息
| SPG | 100 | 类型 | Feed-Thru |
| 系列 | WDU | 单元数量 | 1 |
| 层数 | 1 | ||
环境参数
| 工作温度 | +120°C | ||
