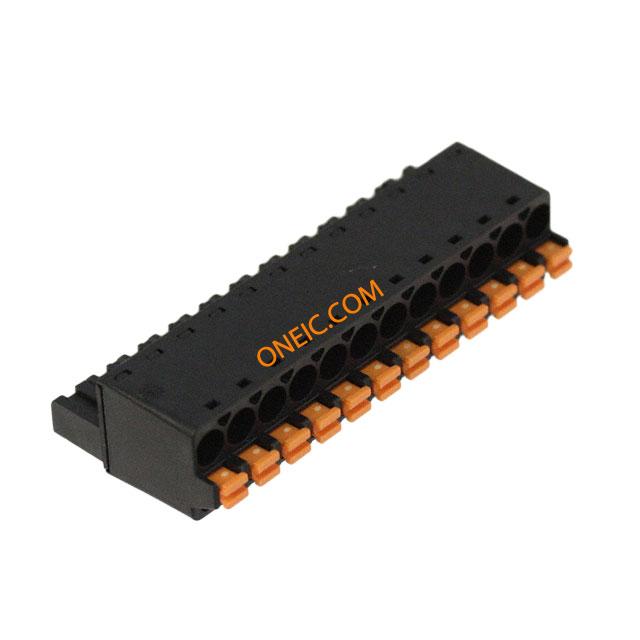

1013540000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | CONN TERM BLOCK 5.08MM 12POS BLK TERM BLOCK PLUG 12POS STR 5.08MM PLUG, FEMALE, 5.08MM, R/A, 12WAY |
| 分类 |
商业参数
| 其他名称 | 281-2735 | 标准包装数量 | 30 |
合规参数
| SVHC | :No SVHC (20-Jun-2013) | 海关税号 | 85366990 |
电气参数
| 电流 | 10A | 电压 | 300V |
机械参数
| 颜色 | Black | 间距 | 0.200" (5.08mm) |
| 重量 | 0.0213 | 包装方式 | Bulk |
| 导线线规 | 12-26 AWG | 端接方式 | Screwless - Push In |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | :Terminal Block, Pluggable |
| 接触镀层 | :Tin | 插头进线方向 | 180° |
| 触头材料 | :Copper, Tin | 连接器颜色 | :Black |
| 触点数 | :12 | 位数 | 12 |
| 接线端子类型 | Plug, Female Sockets | 线规或范围 - AWG | :26AWG |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 系列 | :- | 产品特性 | Retention Latches (Non-Wire Side) |
| 层数 | 1 | 每层位数 | 12 |
