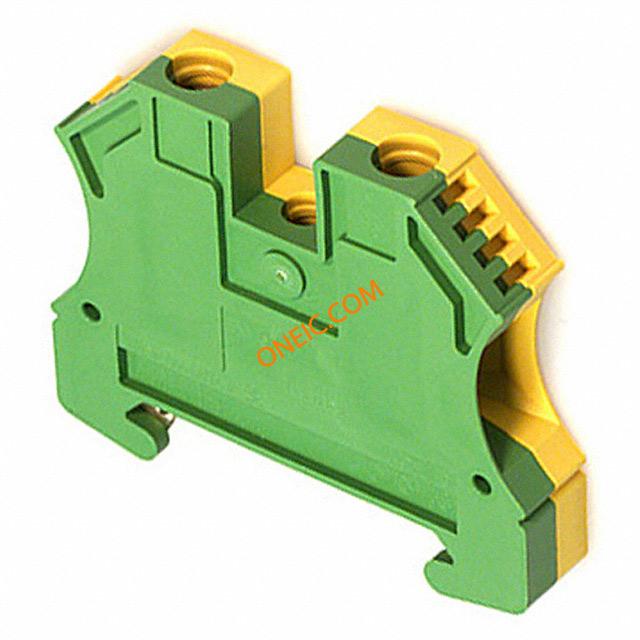

1010300000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Terminal Block 2 POS Screw ST CONN BLOCK TERMINAL GROUND 10MM WPE 10 earth terminal TERMINAL BLOCK, DIN RAIL, 2POS, 16-8AWG |
| 分类 |
商业参数
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL94 V-0 | ||
机械参数
| 颜色 | Green, Yellow | 宽度 | 9.9mm |
| 高度 | 47mm | 长度 | 60mm |
| 重量 | 0.027 | 导线线规 | 6-16 AWG |
| 端接方式 | Screw | 外壳颜色 | Green/Yellow |
| 安装类型 | Straight | 连接器类型 | :DIN Terminal Block |
| 接触镀层 | :- | 排数 | 2 |
| 触头材料 | :- | 壳体材料 | Wemid |
| 剥线长度（范围） | 12mm | 端子宽度 | 9.9mm |
| 端接样式 | Screw | 触点数 | :2 |
| 位数 | 2 | 绝缘材料 - 材质 | Thermoplastic, Wemid |
| 线规或范围 - AWG | 6-16 AWG | 线规或范围 - mm² | 1.5-16mm² |
| 第一连接器安装类型 | :DIN Rail | 每排/每行位置数 | 2 |
产品信息
| 类型 | Terminal Block | 系列 | :W |
| 层数 | 1 | 电路数 | 1 |
环境参数
| 工作温度 | +100°C | ||
文档与媒体
相关型号
1060300000
weidmuller
Conn Jumper M 2 POS 10mm Screw ST TERMINAL CROSS CONN WQB-PEN 10
8527 002100
Belden Wire & Cable
Hook-up Wire 12AWG 1C PVC 100ft SPOOL RED WIRE; HOOK UP; 12AWG; STRANDED; PVC; 1000V; MIL-W-76C TYPE MW RED; 30m

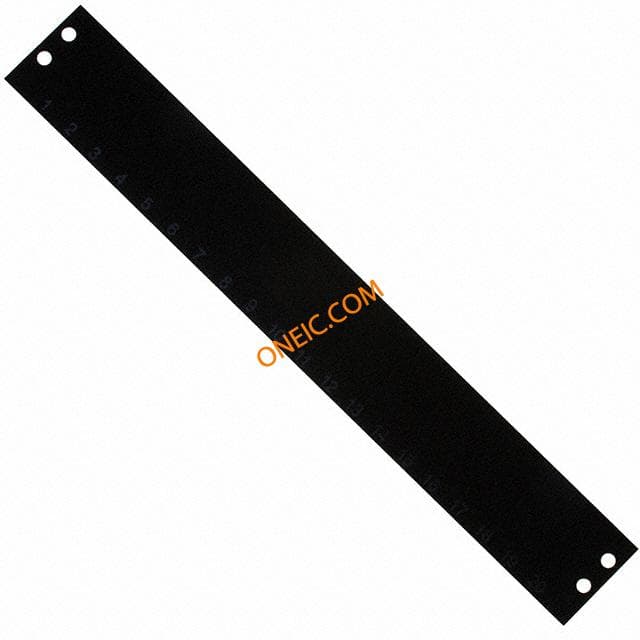

MS-20-141
