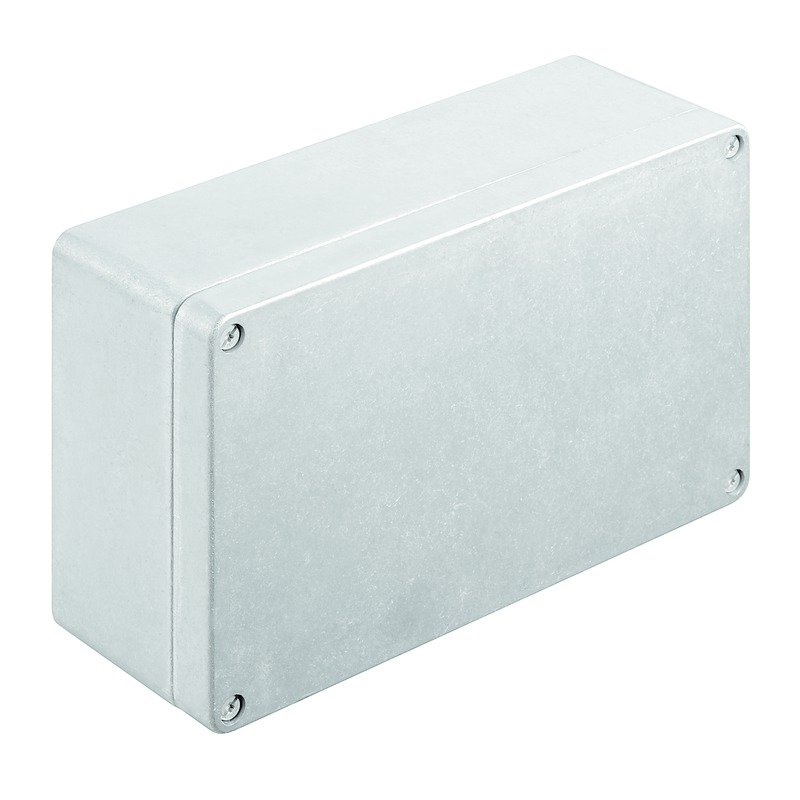

0573600000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | K61, ENCLOSURE, AL,EARTH SCR -EA ENCLOSURE SAFETY GND SCREW ALUM |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Conform | 防护类型 | IP68 (t=72h, h=1m) |
| IEC标准 | 27-18-92-90 | 认证 | E197061 |
| 认证机构 | 14.40040.250 | 标准编号 | 31-26-15-02 |
| 保护特性 | IP66, IP67, IP68, NEMA 4, NEMA 4x | 认证机构标志 | 44536-07 |
电气参数
| 频率 | 27-14-91-07 | 连接器阻抗 | M6 torx stainless steel screws with slot |
| 连接器类型 - 电压输入 | 1x19 | ||
机械参数
| 颜色 | Unpainted | 深度 | 91 mm |
| 宽度 | 260 mm | 高度 | 3.583" (91.00mm) |
| 重量 | 4.3 lbs (2kg) | 材料（通用） | Metal, Aluminum |
| 外壳样式 | left, right | 面积（长x宽） | 64.5" (416cm) |
| 安装类型 | Holes 6 mm | 外壳镀层 | Neoprene |
| 接触镀层 | untreated | 深度（英寸） | 3.583 inch |
| 壁厚 | 4.5 mm | 宽度（英寸） | 10.236 inch |
| 高度（英寸） | 6.299 inch | 尺寸/外形 | 10.236" L x 6.299" W (260.00mm x 160.00mm) |
| 材料厚度 | 4.5 mm | 螺纹/螺钉/孔尺寸 | 8 ???New24??? |
| 每次冲击容量 | 10.00 J | 行业认可的配合直径 | 13 |
产品信息
| 类型 | KLIPPON K61 | 设计类型 | Cover Included |
| ETIM 6*0 | EC000261 | 产品特性 | Sealed |
| GTIN（EAN） | 4008190126919 | 描述 | The accessory sets contain the necessary mounting material. Necessary on use of 2 hinges per longitudinal side. |
| 应用 | Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction | 图例（文字） | The colours of painted enclosures may vary under certain circumstances. **Delivery time available on request. |
| 运输信息 | Shipped from Digi-Key | 容器类型 | Box |
| 工程数据 | EPLAN | 固件版本 | Klippon K, Empty enclosure, Aluminium enclosure, Height: 160 mm, Width: 260 mm, Depth: 91 mm, Material: Aluminium AlSi12, untreated, Silver, Silver |
| 其他规格 | 3 | 技术数据描述文本 | The mounting rails are designed to be installed directly.Assembly with terminals provides for 10 mm clearance to the ends of the mounting rail.Ordering recommendations:TS 35 mounting rail (screw-type terminals) WDU 2.5 1020000000 / (tension clamp terminals) ZDU 2.5 1608510000*For fitting the enclosures with terminal blocks, please refer to the Terminal block catalogue or the SAK series. We recommend BK 12 or BK 12 CRN (0625320000) for vertical installations. There are no pre-defined mounting points set within this enclosure for installing internal equipment in a vertical position. |
环境参数
| 额定等级 | IP66, IP67 | ET（伏秒积） | EC000058 |
| 防护等级 | 27-14-91-07 | 工作温度 | 85 °C |
