点击放大查看

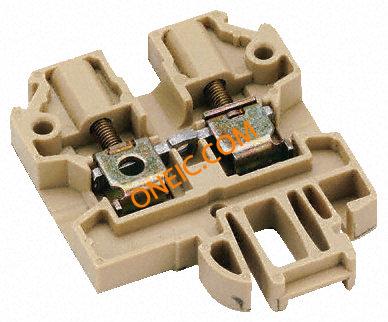

0128360000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | Conn Feed-Thru 2 POS Screw Cable Mount 30A TERM BLK SAK 4 TS32 PA BEIGE Non-Fuse DIN Rail Terminal, 32A, 800V SAK 4 standard terminal,32A TERMINAL BLOCK, DIN RAIL, 2POS, 22-10AWG |
| 分类 |
商业参数
| 其他名称 | SAK 4/32 PA BG | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 材料阻燃等级 | UL94 V-2 | ||
电气参数
| 电流 - UL | 30A | UL电压 | 600V |
| 电流 - IEC | 34A | IEC电压 | 800V |
| 额定电压 | 800 V | 最大额定电流 | 32A |
机械参数
| 颜色 | Beige | 重量 | 0.009 |
| 导线线规 | 10-22 AWG | 端接方式 | Screw |
| 外壳颜色 | Beige | 安装类型 | Cable Mount |
| 连接器类型 | :DIN Terminal Block | 接触镀层 | :- |
| 排数 | 2 | 触头材料 | :- |
| 端子宽度 | 6.5mm | 端接样式 | Screw |
| 触点数 | :2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA66), Nylon 6/6 | 线规或范围 - AWG | 10-22 AWG |
| 线规或范围 - mm² | 0.5-6mm² | 第一连接器安装类型 | :DIN Rail |
产品信息
| 类型 | Feed-Thru | 系列 | SAK |
| 层数 | 1 | ||
环境参数
| 工作温度 | +100°C | ||
文档与媒体
相关型号

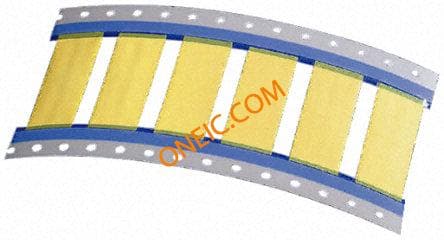

TMS-SCE-1/4-2.0-9
TE Connectivity / Raychem
Wire Identification HS-SLEEVE 1/4 WH PRICE PER PC Wire & Harness ID Products HEAT SHRINK SLEEVE White hi-spec military marker,6.4mm i/d Cable Markers Cross Linked Polyolefin White Cable Markers Cross Linked Polyolefin White Product Highlights:TMS-SCE SeriesMarker SleeveMilitary GradeRadiation Cross-Linked Polyolefin MaterialShrink Ratio = 3:1 MARKER, HEATSHRINK, HIGH SPEC GRADE Sleeve,Marker;White;RadiationCross-LinkedPolyolefin;3:1;0.023in.;2in. 3:1 Shrink Ratio 50.8mm Length Military Grade Heat Shrink Sleeve TE Connectivity TMS-SCE 系列 热收缩电缆标识

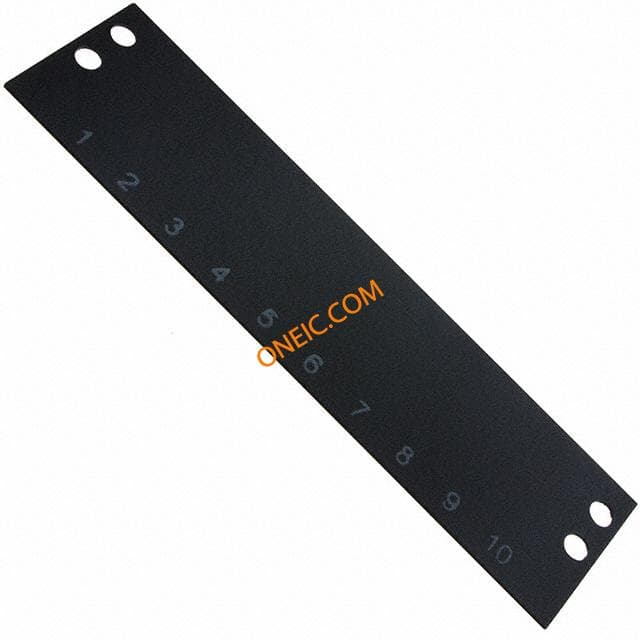

MS-10-140
