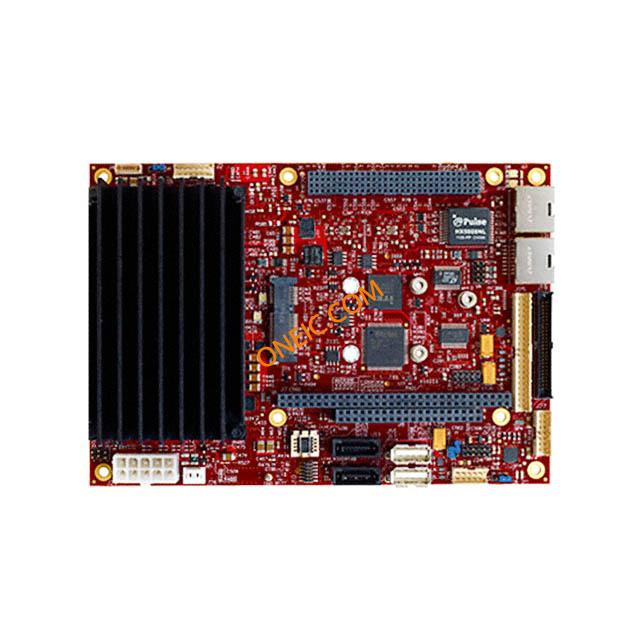

VL-EPIC-25SB
| 制造商 | VersaLogic Corporation |
| 描述 | SBC ATOM D525 1.8 GHZ MAX 4GB |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
电气参数
| 转速 | 1.8GHz | 以太网 | GbE (2) |
| 功率（瓦） | 11.7W | 视频输出接口 | VGA, LVDS |
| 看门狗定时器 | Yes | 数字I/O线数 | 16 |
| RS-232（422、485） | 4 | 模拟输入/输出 | 8:4 |
机械参数
| 尺寸/外形 | 4.5" x 6.5" (115mm x 165mm) | ||
产品信息
| USB | USB 2.0 (6) | 外形规格 | EPIC |
| 核心处理器 | Atom D525 | 核心数 | 2 |
| 扩展接口/总线 | PC/104-Plus | RAM容量/已安装 | 4GB/0GB |
环境参数
| 冷却类型 | Heat Sink | 存储接口 | SATA2 (2), mSATA, eUSB, CompactFlash |
| 工作温度 | 0°C ~ 60°C | ||
相关型号
VL-CBR-2014
VersaLogic Corporation
LVDS TO VGA ADAPTER
VL-CBR-1201
VersaLogic Corporation
12-PIN 2 MM LATCH/15-PIN VGA
VL-MM7-2SBN
VersaLogic Corporation
2GB DDR3 CLASS 2 STD TEMP ROHS

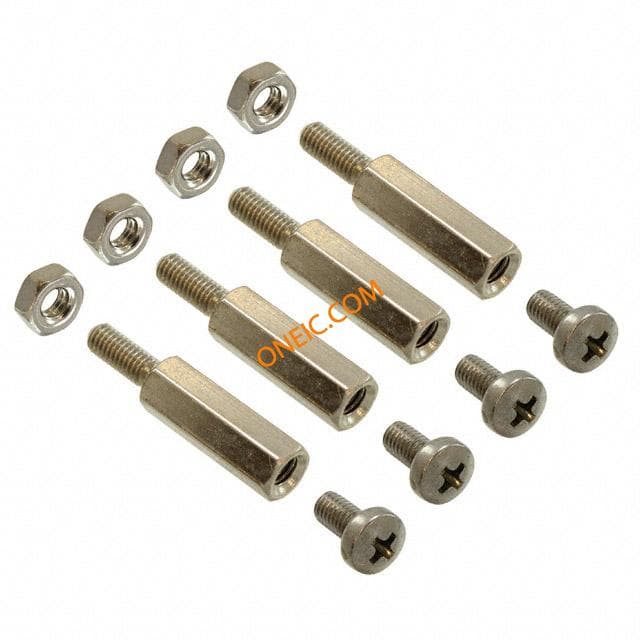

VL-HDW-101
VersaLogic Corporation
4 SCREWS, NUTS&STEEL STAND-OFFS

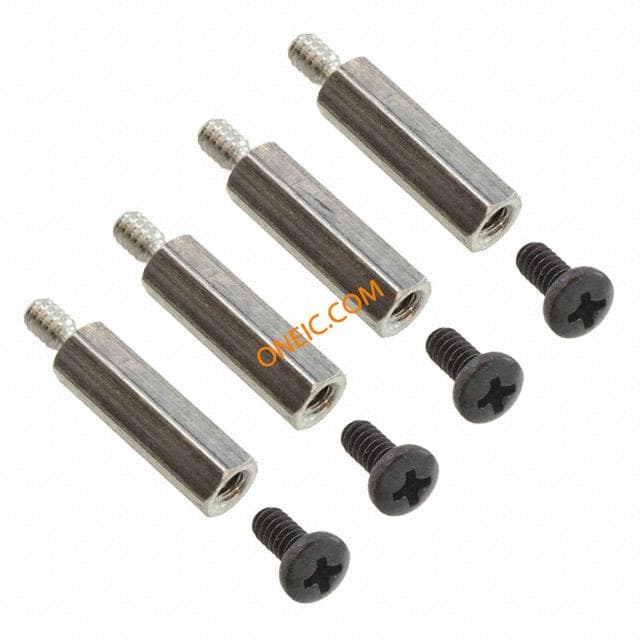

VL-HDW-100
VersaLogic Corporation
4 SCREWS&HEX STAND-OFFS

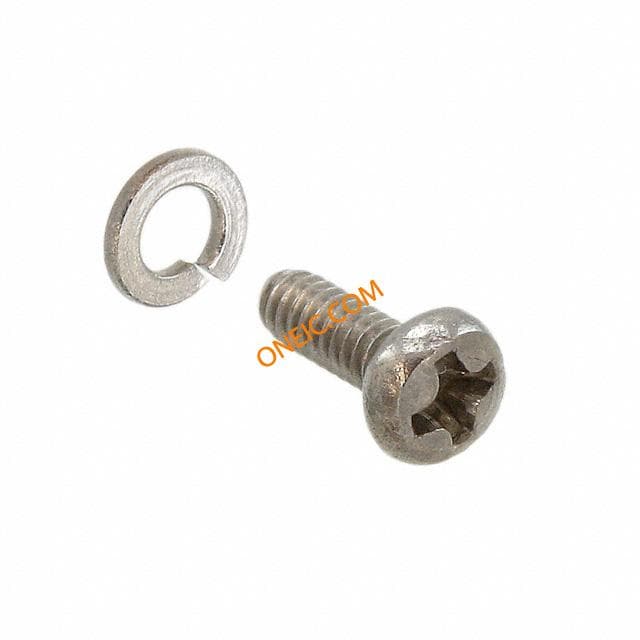

VL-HDW-107
VersaLogic Corporation
20 EA SCREWS & LOCK WASHERS
VL-CBR-2010
VersaLogic Corporation
20" LVDS CABLE; HIROSE CONNECTOR
VL-MM7-2EBN
VersaLogic Corporation
2GB DDR3 CLASS 2 EXT TEMP ROHS
VL-CBR-1401
VersaLogic Corporation
6" CABLE FOR 2 SPX MODULES
VL-CBR-1402
VersaLogic Corporation
12" CABLE FOR 4 SPX MODULES
VL-CF-CLIP1
VersaLogic Corporation
10 PACK CF RETENSION CLIPS
VL-MM7-1EBN
VersaLogic Corporation
1GB DDR3 CLASS 2 EXT TEMP ROHS
VL-HDW-106
VersaLogic Corporation
4 SCREWS, NUTS AND STAND-OFFS
VL-HDW-105
VersaLogic Corporation
4 SCREWS, NUTS&BRASS STAND-OFFS

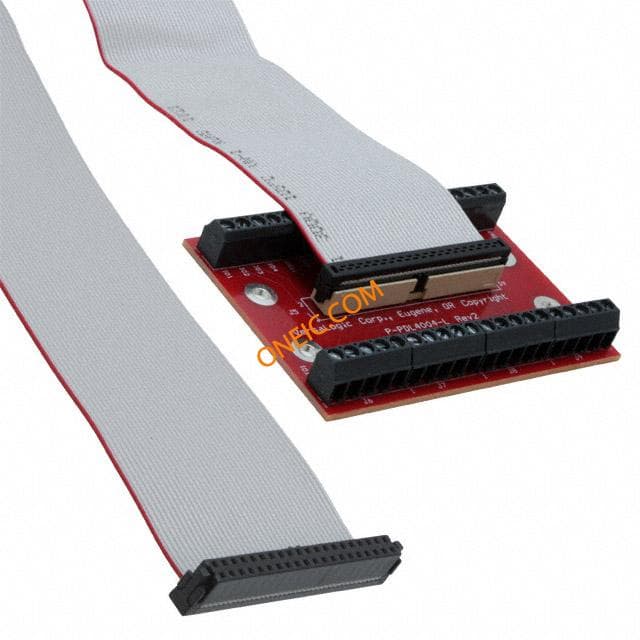

VL-CBR-4004
