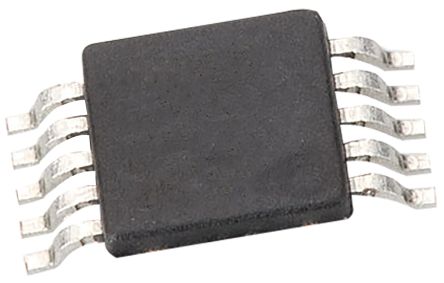

TS3A24157DGSR
| 制造商 | Texas Instruments Incorporated |
| 描述 | Analog Switch Dual SPDT 10-Pin VSSOP T/R Analog Switch ICs 0.65O Dual SPDT Ana Sw 2Ch Multip/Demul IC SWITCH DUAL SPDT 10MSOP TS3A24157DGSR, Analogue SPDT Switch Dual SPDT, 3V, 10-Pin, MSOP, VSSOP IC, 2CH SPDT SW/MUX/DEMUX 10-MSOP 0.65 Ohm Dual SPDT Analog Switch Dual-Channel 2:1 Multiplexer/Demultiplexer Texas Instruments 模拟单刀双掷开关, 双单刀双掷, 3 V电源电压, 10针 MSOP封装 |
| 分类 |
商业参数
| 其他名称 | 296-22856-2 | 产品类别 | Analog Switch ICs |
| 标准包装数量 | Cut Tape | 工厂包装数量 | 2500 |
| 标准封装名称 | SSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电路 | 2 x SPDT | 通道数 | 2 |
| 串扰 | Yes | 输入信号 | Single Ended |
| 开启时间 | 75@1.8V ns | 输出信号 | Differential |
| 输入功率 | Single | 输出电流 | 0.000015 mA |
| 供电电流 | 0.2 uA | 关断延迟时间 | 35@1.8V ns |
| 输入数量 | 2 | 供电电压 | 1.65 V |
| 输出数量 | 4 | 供电类型 | Single |
| 通道数量 | 2 | 最大额定电流 | Catalog |
| 供电电源 | Single Supply | 开关功能/额定值 | SPDT |
| 导通电阻（最大） | 0.95@1.65V Ohm | 电源电压范围（典型） | Not Required V |
| 开关时间（Ton, Toff）（最大） | 30 ns | 多路复用/解复用电路 | Dual SPDT |
机械参数
| 宽度 | 3mm | 高度 | 1.02mm |
| 长度 | 3mm | 重量 | 0.0002 |
| 带宽 | :50MHz | 包装方式 | Reel |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :10 | 封装形式 | 10VSSOP |
| 冷却的封装 | MSOP, VSSOP | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 3.1(Max) | 包装数量 | VSSOP |
| 尺寸/外形 | 3 x 3 x 1.02mm | 位数 | 10 |
| 外壳尺寸-插件 | 0.95(Max) | 供应商器件封装 | 10-VSSOP |
产品信息
| 类型 | Analog Switch | 已删除 | Compliant |
| 产品特性 | Break-before-make Low Harmonic Distortion Low Power | 功能 | Switch |
| 极性 | Non-Inverting | 软件 | SCDS208A |
| 基本单元 | :3 | 开关类型 | Analogue |
| 配置 | Dual SPDT | 开关数量 | 2 |
| 使用的IC/零件 | View | 印刷电路板数量 | 10 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | + 85 C |
