TPS799XXEVM-105

制造商	Texas Instruments Incorporated
描述	Evaluation Module Demonstrates Three Individual Configurations Of The TPS799XX Low Quiescent Current, UltraLow Noise, High Psrr, Low Dropout Linear Regulator Power Management IC Development Tools TPS799XX-105 Eval Mod EVALUATION MODULE FOR TPS799XX TPS799XXEVM-105 EVALUATION MODULE EVAL BOARD, TPS799XX 200mA LDO REGULATOR
分类	集成电路逻辑IC标准逻辑IC

对参数有疑问？问 AI 助手

商业参数

产品	Power Management Modules	其他名称	296-21172
产品类别	Power Management IC Development Tools	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS	No	SVHC	:No SVHC (16-Dec-2013)
欧盟RoHS	RoHS Not Applicable	海关税号	84733020

电气参数

稳压器类型	Positive Fixed and Adjustable	额定电压	1.6 V to 3.3 V
输出电流	200mA, 200mA, 200mA	元件数量	:TPS799XX
最小输入电压	1.6V, 2.8V, 3.3V

机械参数

重量	1	电路板厚度	Fully Populated
尺寸/外形	49.7 mm x 31.2 mm

产品信息

类型	Development Kit	内容	Board
产品特性	:-	套件类型	:Power Management
套件内容	:Evaluation Board for TPS799XX	每IC通道数	1 - Single
工具类型/特性	TPS799x	使用的IC/零件	TPS79901, TPS79928
芯片组制造商	:Texas Instruments

环境参数

工作温度

-40°C ~ 125°C

文档与媒体

PDF 文档

TPS799xx

在线文档

TPS799xxEVM-105 Users Guide

在线文档

slvu130

PDF 文档

slvu130.pdf

相关型号

TPS799285DDCT

texas instruments

LDO Regulator Pos 2.85V 0.2A 5-Pin SOT T/R LDO Regulator Pos 2.85V 0.2A 5-Pin TSOT-23 T/R IC REG LDO 2.85V 0.2A 5SOT TPS799285DDCT, Low Dropout Voltage Regulator, 0.2A, 2.85V ±1%, 2.7 to 6.5Vin, 5-Pin SOT LDO Voltage Regulators 200mA High PSRR LDO 200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator

¥4.4159

详情

TPS79942DDCR

texas instruments

LDO Regulator Pos 4.2V 0.2A 5-Pin SOT T/R LDO Regulator Pos 4.2V 0.2A 5-Pin TSOT-23 T/R IC REG LDO 4.2V 0.2A 5SOT LDO Voltage Regulators Sgl Output LDO 200mA Fixed 4.2V 200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator

¥2.0264

详情

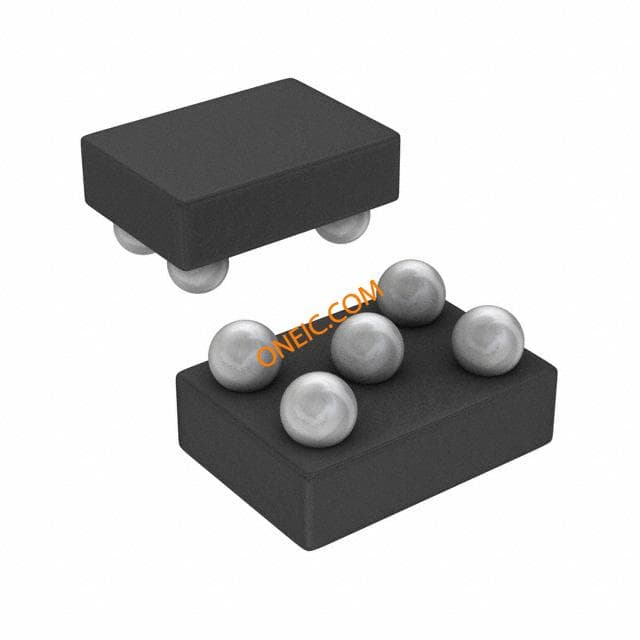

TPS79925YZUT
