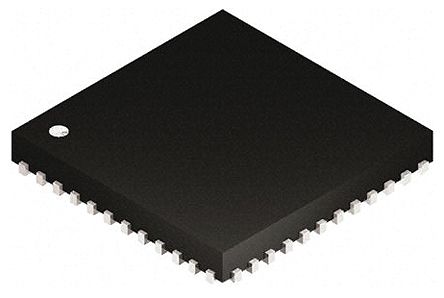

TPS65910A1RSL
| 制造商 | Texas Instruments Incorporated |
| 描述 | Power Management Unit 48-Pin VQFN EP T/R IC PWR MGMT 8 LDO 48VQFN PMIC Solutions Integr Power Mgmt IC PMU, 4 DC/DC, 8 LDO, RTC, 48VQFN Integrated Power Management IC (PMIC) w/ 4 DC/DCs, 8 LDOs and RTC in 6x6mm QFN Family Texas Instruments 11输出 电源管理 IC, 降压, 1.7A, 2.7 → 5.5 V输入, 1.78 → 1.88 V输出, 3 MHz, 48针 VQFN封装 Power Management Specialized - PMIC Integr Power Mgmt IC |
| 分类 |
商业参数
| 产品类别 | PMIC Solutions | 标准包装数量 | Trays, Rail / Tube |
| 工厂包装数量 | 60 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423990 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 输出端 | 12 | 稳压器类型 | 9 |
| 额定电压 | 2.7 V to 5.5 V | 输出电流 | 20 mA |
| 占空比（最大） | 100 % | 供电电压 | 1.7 V ~ 5.5 V |
| 输出数量 | :11 | 最大额定电流 | Catalog |
| 稳压器数量 | :9 | 开关频率 | 3000 |
| 共模瞬态抗扰度（最小） | Automotive | ||
机械参数
| 重量 | 0.00027 | 包装方式 | Bulk |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :48 | 封装形式 | 48VQFN EP |
| 冷却的封装 | VQFN EP | 材料表面处理 | :MSL 3 - 168 hours |
| 包装数量 | 60 | TUBE | 位数 | 48 |
| 供应商器件封装 | 48-VQFN (6x6) | ||
产品信息
| 类型 | :- | 系列 | TPS65910 |
| 已删除 | Compliant | 产品特性 | Comm Control Dynamic Voltage Scaling Enable I2C Control Over Current Protection Power Sequencing Synchronous Rectification Thermal Shutdown |
| 软件 | SWCS046U | 应用 | Handheld/Mobile Devices, OMAP™ |
| 制造商全称 | Texas Instruments Samsung Freescale | 核心处理器 | AM1705/07 AM1806/08 AM335x AM3505/17 AM3703/15 DM3730/25 OMAP-L137/38 OMAP350xx TMS320C674x S5PV210 S5PC110 S5PC100 S5P6440x DM643x DM644x IMX27 IMX35 IMX37 IMX508 IMX51 IMX53 |
| 图案编号 | Y | 使用的IC/零件 | View |
| A/D转换器数量 | :3 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 结工作温度 | 125C | ||
