TPS54418EVM-375
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Board For Synchronous Step-Down Converter Power Management IC Development Tools 2V to 6V 4A SWIFT Cnvrtr Eval Mod EVAL MODULE FOR TPS54418-375 TPS54418EVM-375 EVALUATION MODULE |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 84733020 | ||
电气参数
| 额定电压 | 2.95 V to 6 V | 输出电流 | 4A |
| 元件数量 | :TPS54418 | 稳压器拓扑 | Buck |
| 开关频率 | 1MHz | 最小输入电压 | 1.8V |
机械参数
| 重量 | 1 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 63.5 mm x 63.5 mm | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :Compensation Components are External to IC and External Divider for Adjustable Output Voltage | 套件类型 | :Power Management - Voltage Regulator |
| 套件内容 | :Board | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | TPS54418 |
| 射频系列/标准 | TPS54418 | 使用的IC/零件 | TPS54418 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Step Down DC/DC Converter |
文档与媒体
相关型号

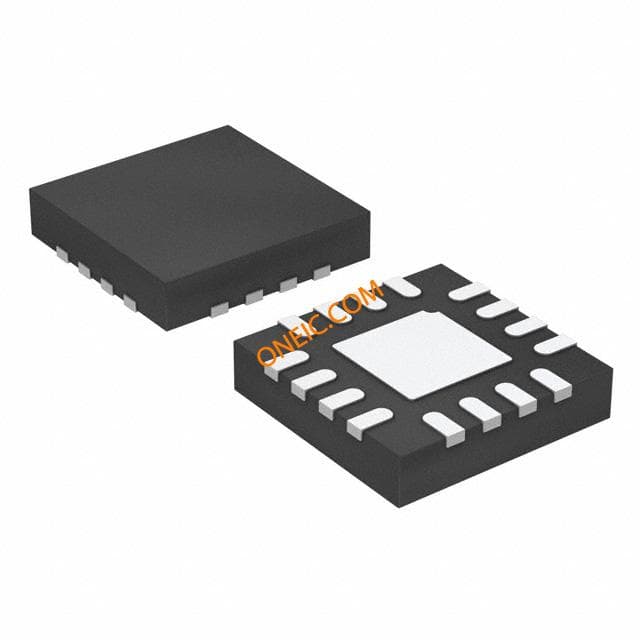

TPS54418RTER
