TPS54325EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Board For 4.5-V To 18-V, 3-A Output Synchronous Step Down Switcher With Integrated FET Power Management IC Development Tools 5-17V Input 3A SWIFT CVTR Eval EVAL MODULE FOR TPS54325 TPS54325EVM EVALUATION MODULE EVAL BOARD, TPS54325, 3A SYS STEP-DOWN REG |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 84733020 | ||
电气参数
| 额定电压 | 4.5 V to 18 V | 输出电流 | 3A |
| 元件数量 | :TPS54325 | 稳压器拓扑 | Buck |
| 开关频率 | 700kHz | 最小输入电压 | 1.05V |
机械参数
| 重量 | 1 | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :- | 套件类型 | :Power Management |
| 套件内容 | :Evaluation Board for TPS54325 | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | TPS54325 |
| 射频系列/标准 | TPS54325 | 使用的IC/零件 | TPS54325 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Synchronous Buck Regulator |
文档与媒体
相关型号

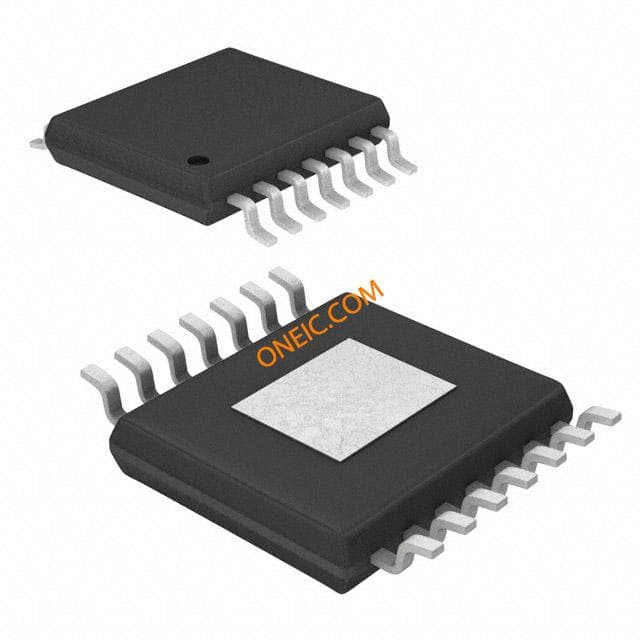

TPS54325PWPR
texas instruments
Conv DC-DC Single Step Down 2V to 18V 14-Pin HTSSOP EP T/R IC REG BUCK SYNC ADJ 3A 14HTSSOP Voltage Regulators - Switching Regulators 4.5-18Vin 3A Synch St-Down SWIFT Cnvrtr 4.5V to 18V Input, 3A Synchronous Step-Down SWIFT™ Converter Switching Voltage Regulators 4.5-18Vin 3A Synch St-Down SWIFT Cnvrtr
TPS54325TPWPRQ1
texas instruments
Conv DC-DC Single Step Down 2V to 18V 14-Pin HTSSOP EP T/R IC REG BUCK SYNC ADJ 3A 14HTSSOP Voltage Regulators - Switching Regulators 4.5V-18Vin,3A Sync Step-Down DCAP2 Mode Automotive Catalog 4.5V to 18V Input, 3A Synchronous Step Down DCAP2 Mode Converter Switching Voltage Regulators 4.5V-18Vin,3A Sync Step-Down DCAP2 Mode
TPS54325PWP
texas instruments
Conv DC-DC Single Step Down 2V to 18V 14-Pin HTSSOP EP Tube IC REG BUCK SYNC ADJ 3A 14HTSSOP Voltage Regulators - Switching Regulators 4.5-18Vin 3A Synch St-Down SWIFT Cnvrtr STEP DOWN CONV, 4.5 TO 18V, 14TSSOP IC, SYNC STEP-DOWN CONVERTER, 14-HTSSOP 4.5V to 18V Input, 3A Synchronous Step-Down SWIFT™ Converter DC/DC Converter IC 0.76...5.5 V HTSSOP-14, TPS54325PWP, Texas Instruments Texas Instruments 降压 开关稳压器, 3A, 可调输出, 0.76 → 5.5 V, 700 kHz, 14针 HTSSOP封装 Switching Voltage Regulators 4.5-18Vin 3A Synch St-Down SWIFT Cnvrtr
