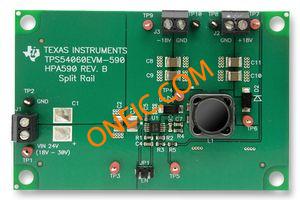

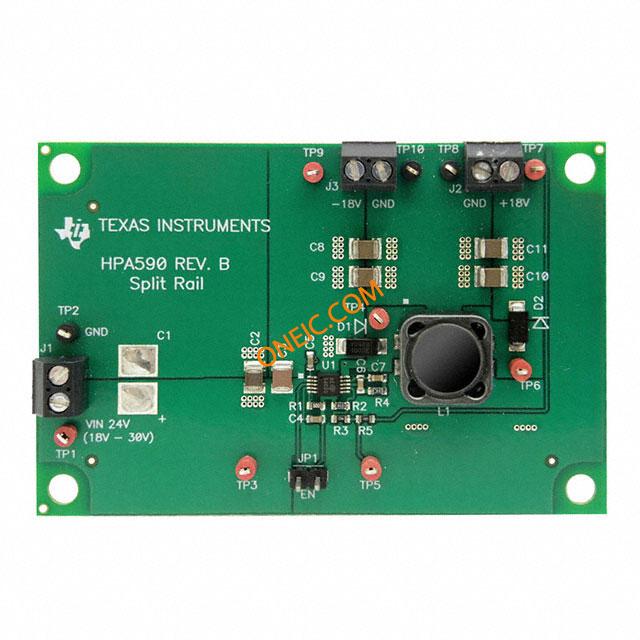

TPS54060EVM-590

制造商	Texas Instruments Incorporated
描述	TPS54060EVM-590 Power Management IC Development Tools DC/DC converter Eval Mod EVALUATION MODULE FOR 100-MA, SPLIT RAIL SWIFT REGULATOR EVAL MODULE FOR TPS54060 TPS54060, DC/DC, BUCK, EVAL MODULE
分类	集成电路逻辑IC标准逻辑IC

对参数有疑问？问 AI 助手

商业参数

产品	Power Management Modules	产品类别	Power Management IC Development Tools
标准包装数量	1	工厂包装数量	1

合规参数

RoHS	No	SVHC	:No SVHC (16-Dec-2013)
欧盟RoHS	RoHS Not Applicable	海关税号	85423190

电气参数

接口	2-Wire	额定电压	18 V to 30 V
输出电流	0 ~ 100 mA	元件数量	:TPS54060
稳压器拓扑	Buck	开关频率	300kHz
最小输入电压	±18V

机械参数

重量

0.3

电路板厚度

Fully Populated

产品信息

类型	DC/DC Converters, Regulators & Controllers	内容	Board
产品特性	:Demonstrates Transformer-coupled Split Rail Operation, Low Drain-to-Source On-resistance	套件类型	:Power Management - Voltage Regulator
套件内容	:Board	主要用途	DC/DC, Positive and Negative
输出及类型	2, Non-Isolated	工具类型/特性	TPS54060
使用的IC/零件	TPS54060	芯片组制造商	:Texas Instruments
应用细节	:Step Down DC / DC Converter	支持MCU系列	:TPS54060
