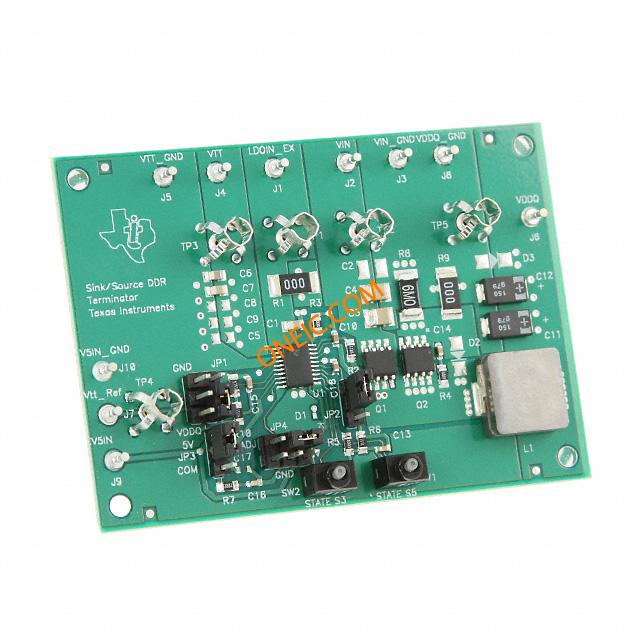

TPS51116EVM-001

点击放大查看

TPS51116EVM-001

制造商
Texas Instruments Incorporated
描述Evaluation Module For TPS51116001 Power Management IC Development Tools TPS51116-001 Eval Mod EVAL MODULE FOR TPS51116-001 EVAL BOARD, TPS51116 DDR, DDR2, DDR3 SYS BUCK CTLR
分类
集成电路逻辑IC标准逻辑IC
对参数有疑问？问 AI 助手

商业参数

产品Power Management Modules其他名称296-18959
产品类别Power Management IC Development Tools标准包装数量Bulk
工厂包装数量1

合规参数

RoHSNo欧盟RoHSRoHS Not Applicable
海关税号85423990

电气参数

额定电压4.5 V to 28 V输出电流10A
元件数量:TPS51116稳压器拓扑Buck
开关频率400kHz最小输入电压1.5V, 1.8V or 2.5V

机械参数

重量0电路板厚度Fully Populated
尺寸/外形57.2 mm x 81.3 mm

产品信息

类型Development Kit内容Board
产品特性Technical Document http://www.ti.com/lit/ds/slus609h/slus609h.pdf套件类型:Power Management
技术DC to DC Controller主要用途DC/DC, Step Down
输出及类型1, Non-Isolated工具类型/特性TPS51116
射频系列/标准TPS51116使用的IC/零件TPS51116
芯片组制造商:Texas Instruments应用细节:Synchronous Buck Controller

文档与媒体

在线文档
sluu202
在线文档
TPS51116EVM Guide
PDF 文档
TPS51116
PDF 文档
sluu202a.pdf
