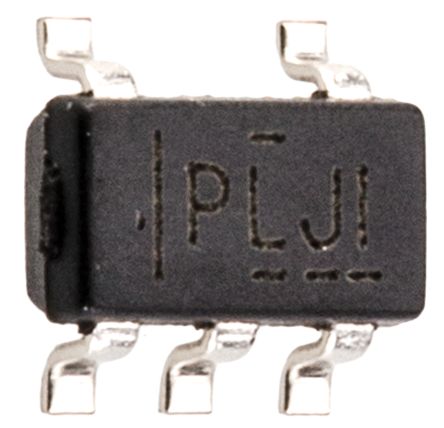

TPS2051BDBVT
| 制造商 | Texas Instruments Incorporated |
| 描述 | USB Power SW Hi Side/DIST Single 5.5V 0.75A to 1.25A 5-Pin SOT-23 T/R Power Switch ICs - USB Sgl Crnt-Ltd Pwr- Dist Sw IC PWR DIST SWITCH SNGL SOT23-5 Single, Current-Limited, Power-Distribution Switch Power Switch IC SOT-23-5, TPS2051, TPS2051BDBVT, Texas Instruments , 双 USB 电源开关, 高侧, 95mΩ, 2.7 V min., 5针 SOT-23封装 Power Switch ICs - Power Distribution Sgl Crnt-Ltd Pwr- Dist Sw |
| 分类 |
商业参数
| 产品 | USB Power Switches | 其他名称 | 296-26912-1 |
| 产品类别 | Power Switch ICs - USB | 标准包装数量 | Cut Tape, Tape & Reel |
| 工厂包装数量 | 250 | 标准封装名称 | SOT-23 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 延迟时间 | 0.5 | 输入功率 | 2.7...5.5 V |
| 测试电流 | 0.5 | 额定电压 | 5.5 |
| 开通延迟时间 | 0.6 | 输出电流 | 0.5 |
| 供电电压 | 2.7 V | 漏电流 | 1.25A |
| 输出数量 | 1 | 稳压器拓扑 | Constant-Current |
| 最大额定电流 | Catalog | 导通电阻 RDS(On) | 0.095 Ohm |
| 最小输入电压 | 2.7 to 5.5 V | 导通电阻 Rds(on) (最大) @ Id, Vgs | 140 mOhm |
| 最大功耗 | 285 mW | 导通电阻（最大） | 95mΩ |
| 短路电流 | 0.75 to 1.25 A | 共模瞬态抗扰度（最小） | Industrial |
| 驱动电压（最大Rds On，最小Rds On） | 70 | ||
机械参数
| 宽度 | 1.6mm | 高度 | 1.15mm |
| 长度 | 2.9mm | 包装方式 | Reel |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | 5 |
| 封装形式 | 5SOT-23 | 冷却的封装 | SOT-23 |
| 总长度 | 3.05(Max) | 包装数量 | SOT-23 |
| 尺寸/外形 | 2.9 x 1.6 x 1.15mm | 位数 | 5 |
| 外壳尺寸-插件 | 1.3(Max) | 供应商器件封装 | SOT-23-5 |
产品信息
| 类型 | High Side Switch|USB Power Distribution Switch | 设计类型 | Single |
| 系列 | TPS2051B | 已删除 | Compliant |
| 软件 | SLVS514L | 开关类型 | 高侧，USB 配电 |
| 制造商全称 | Texas Instruments | 可编程性 | Active High |
| 图案编号 | Y | 开发套件 | TPS2051BEVM |
| 内部开关 | Yes | 开关数量 | 1 |
| 使用的IC/零件 | View | 印刷电路板数量 | 5 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
文档与媒体
相关型号
