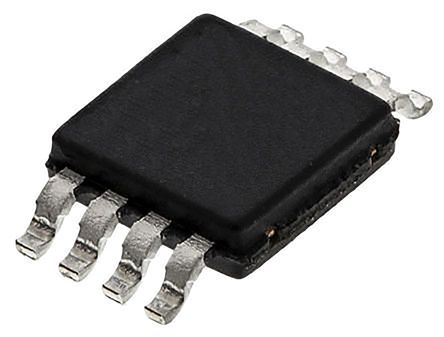

TPS2041BDGN

点击放大查看

TPS2041BDGN

制造商
Texas Instruments Incorporated
描述USB Power SW Hi Side/DIST Single 5.5V 0.75A to 1.25A 8-Pin HTSSOP EP Tube Power Switch ICs - USB Single-Channel Current-Limited USB Power SW Hi Side/DIST Single 5.5V 0.75A to 1.25A 8-Pin HVSSOP EP Tube IC SWITCH PWR DIST SGL 8-MSOP POWER LOAD SWITCH, HIGH SIDE, , MSOP-8 Single-Channel Current-Limited Power Distribution Switch , 四 USB 电源开关, 高侧, 70mΩ, 2.7 V min., 8针 MSOP封装 Power Switch ICs - Power Distribution Single-Channel Current-Limited
分类
集成电路电源管理IC通用电源管理IC
对参数有疑问？问 AI 助手

商业参数

其他名称296-18930-5产品类别Power Switch ICs - USB
标准包装数量Rail / Tube工厂包装数量80

合规参数

RoHSRoHS CompliantSVHC:No SVHC (16-Dec-2013)
欧盟RoHSCompliant海关税号85423990
零件状态ACTIVE抗辐射加固No

电气参数

测试电流0.5额定电压:5.5V
供电电压2.7 V输出数量1
稳压器拓扑Constant-Current最大额定电流Catalog
最小输入电压2.7 to 5.5 V导通电阻 Rds(on) (最大) @ Id, Vgs135 mOhm
最大功耗:1.712W输入逻辑高电平:Active Low
导通电阻（最大）:0.07ohm短路电流0.75 to 1.25 A
共模瞬态抗扰度（最小）Industrial驱动电压（最大Rds On，最小Rds On）70

机械参数

宽度3.1(Max)重量0.000074
包装方式Tube引脚样式Gull-wing
安装类型Surface Mount安装样式SMD/SMT
引脚数:8封装形式8HTSSOP EP
冷却的封装HTSSOP EP材料表面处理:MSL 1 - Unlimited
总长度3.1(Max)包装数量HVSSOP EP
位数8外壳尺寸-插件0.95(Max)
供应商器件封装8-MSOP-PowerPad

产品信息

类型High Side Switch|USB Power Distribution Switch系列TPS2041B
已删除Compliant软件SLVS514L
开关类型:High Side可编程性Active Low
图案编号Y内部开关Yes
开关数量1使用的IC/零件View
印刷电路板数量8
