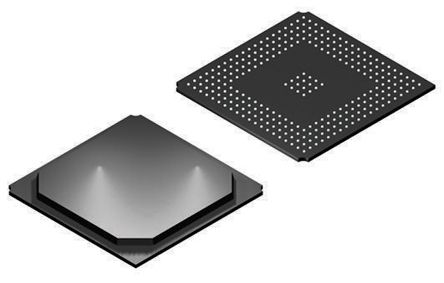

点击放大查看
TMS320C6711DZDP200
| 制造商 | Texas Instruments Incorporated |
| 描述 | DSP Floating-Point 32-Bit 200MHz 1600MIPS 272-Pin BGA Digital Signal Processors & Controllers - DSP, DSC Floating-Pt Dig Sig Proc IC DSP FLOATING-POINT 272-BGA TMS320C6711DZDP200, 32bit Digital Signal Processor 200MHz RAM, 272-Pin BGA Floating-Point Digital Signal Processors Texas Instruments 32bit 数字信号处理器 DSP, 200MHz RAM, 272针 BGA封装 |
| 分类 |
商业参数
| 产品 | DSPs | 商标名 | C6000 |
| 其他名称 | 296-19389 | 产品类别 | Digital Signal Processors & Controllers - DSP, DSC |
| 标准包装数量 | Trays | 工厂包装数量 | 40 |
| 标准封装名称 | BGA | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 转速 | 200 MHz | 内核大小 | 32 b |
| 核心类型 | TMS320 | 接口 | Host Interface, McBSP |
| 时钟速率 | 1600 MIPS | 存储器容量 | 512 kB |
| 存储器类型 | RAM | I/O 数量 | 5 |
| I/O电压 | 3.30V | 核心电压 | 1.26V |
| 额定电压 | 1.2 V, 3.3 V | 时钟频率 | 200 MHz |
| 最大频率 | 200MHz | 供电电压 | 1.2|3.3 V |
| 非易失性存储器 | External | 程序存储器大小 | Not Required kB |
| 程序存储器类型 | Asynchronous SRAM, Synchronous SBSRAM, SDRAM | 最小供电电压 | 1.14/3.13 V |
| 频率（中心/带宽） | 200MHz | ||
机械参数
| 宽度 | 27mm | 高度 | 1.78mm |
| 长度 | 27mm | 重量 | 0.108111 oz |
| 包装方式 | Tray | 引脚样式 | Ball |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | 272 | 封装形式 | 272BGA |
| 冷却的封装 | BGA | 连接器用途 | Host Interface, McBSP |
| 总长度 | 27 | 包装数量 | BGA |
| 尺寸/外形 | 27 x 27 x 1.78mm | 位数 | 272 |
| 外壳尺寸-插件 | 1.78 | 供应商器件封装 | 272-BGA (27x27) |
| 核心数/总线宽度 | 32 Bit | ||
产品信息
| 类型 | TMS320 | 格式 | Floating Point |
| 系列 | TMS320C6x | 功能 | Y |
| 协议 | 400 MMACS | 软件 | SPRS292B |
| 片内RAM（通道数×位宽） | 72kB | 架构 | Advanced VLIW |
| 显示模式 | 浮点 | 制造商全称 | Texas Instruments |
| 架构类型 | 高级 VLIW | 可编程性 | No |
| 数字格式 | Floating-Point | 核心处理器 | TMS320 |
| 指令类型 | Floating Point | 功能框图 | fbd_sprs292b.gif |
| 使用的IC/零件 | View | 其他规格 | 1600 |
| 印刷电路板数量 | 272 | 输入数量及类型 | 5 I/O |
环境参数
| 测试温度 | 0 to 90 | 工作温度 | + 90 C |
| 结工作温度 | 90C | ||
