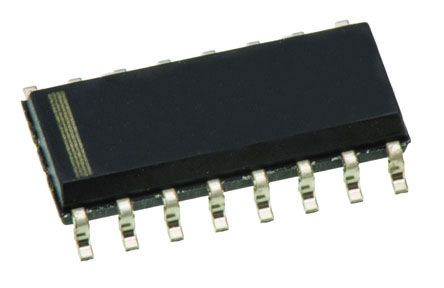

TLV5604CD

点击放大查看

TLV5604CD

制造商
Texas Instruments Incorporated
描述DAC 4-CH Resistor-String 10-bit 16-Pin SOIC Tube Digital to Analog Converters - DAC 10bit Quad Serial IC 10-BIT QUAD SER D/A 16-SOIC 10BIT DAC QUAD, SMD, 5604, SOIC16 10-Bit, 3 us Quad DAC, Serial Input, Simultaneous Update, Programmable Settling Time, PowerDown Texas Instruments 四 10 位 DAC, 102ksps, Serial (SPI/QSPI/Microwire)接口, 16针 SOIC封装
分类
集成电路数据转换器通用数据转换器
对参数有疑问？问 AI 助手

商业参数

其他名称296-2297-5产品类别Digital to Analog Converters - DAC
标准包装数量Rail / Tube工厂包装数量40
标准封装名称SOIC

合规参数

RoHSRoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85411000
零件状态:5604抗辐射加固No

电气参数

接口Serial (3-Wire, 4-Wire, SPI, QSPI, Microwire)线性度:0.1%
信噪比68(Typ) dB满量程±0.6 %FSR
输入类型:Serial分辨率10 Bit
输出类型Voltage输出范围0
INL/DNL（LSB）±1 LSB输入功率Analog and Digital
建立时间18 us转换器类型General Purpose
数据接口Serial位数10
基准类型Ext数据速率（最大）102 Ksps
DAC数量4输出电流:3.5mA
供电电压5.5 V失真额定值（如THD）+/- 1 LSB
输出数量4供电类型Analog and Digital
分辨率（位）:10bit电压基准External
通道数量4采样频率:102kSPS
最大额定电流Catalog供电电源Analog and Digital
增益带宽积0.6平均正向功率3
输出数量与类型4 Voltage, Unipolar采样率（每秒）102k
电源电压范围（典型）Not Required V

机械参数

宽度4(Max)重量0.005471 oz
包装方式Tube引脚样式Gull-wing
端接方式:SMD安装类型Surface Mount
安装样式SMD/SMT引脚数:16
封装形式16SOIC冷却的封装SOIC
材料表面处理:MSL 1 - Unlimited总长度10(Max)
包装数量SOIC位数16
外壳尺寸-插件1.5(Max)供应商器件封装16-SOIC N

产品信息

系列TLV5604软件SLAS176B
基本单元:5604架构Resistor-String
使用的IC/零件View印刷电路板数量16
A/D转换器数量1

环境参数

温度范围:Commercial测试温度0 to 70
工作温度0 to 70 °C结工作温度70C

文档与媒体

PDF 文档
slas176b.pdf
PDF 文档
TLV5604
PDF 文档
tlv5604.pdf
PDF 文档
80105.pdf
在线文档
slas176b
在线文档
tlv5604
