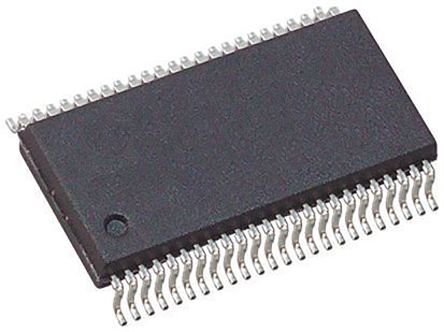

SN74LVTH16245ADGGR
| 制造商 | Texas Instruments Incorporated |
| 描述 | Bus XCVR Dual 16-CH 3-ST 48-Pin TSSOP T/R IC BUS TRANSCVR 16BIT 48TSSOP SN74LVTH16245ADGGR, Dual Bus Transceiver LVT, 16-Bit Non-Inverting 2.7 to 3.6V 48-Pin TSSOP IC, TRANCEIVER, BUS, SMD 3.3-V ABT 16-Bit Bus Transceivers With 3-State Outputs Logic IC TSSOP-48, SN74LVTH16245, SN74LVTH16245ADGGR, Texas Instruments , 双 16位 非反相 总线收发器, 48针 TSSOP封装 Bus Transceivers Tri-State ABT 16-Bit |
| 分类 |
商业参数
| 其他名称 | 296-1262-2 | 标准包装数量 | Cut Tape, Tape & Reel |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电压 | 3.3 | 数据速率 | Bi-Directional |
| 输入类型 | TTL/CMOS | 逻辑类型 | LVT |
| 输出类型 | 3-State | I/O 数量 | 5 V |
| 输出信号 | LVTTL | 位数 | 16 |
| 额定电压 | 3.3 V | 输出电流 | :64mA |
| 输出电压 | LVTTL | 供电电压 | 2.7 V ~ 3.6 V |
| 传播延迟 | 50pF | 通道数量 | 16 |
| 元件数量 | 2 | 最大额定电流 | Catalog |
| 输出1频率 | 160 | 施密特触发器输入 | No |
| 最小供电电压 | 3.6 V | 输入逻辑低电平 | LVTTL |
| 传播延迟（最大） | 5.5 | 传播延迟时间 | 5.5 ns |
| 输入逻辑高电平 | LVTTL | 静态电流（最大） | 5 |
| 输出高/低电流 | 32mA, 64mA | 每元件位数 | 8 |
| 输出源/灌电流 | -32/64 | 最大传播延迟 @ V, 最大CL | 2.3 ns @ 3.3 V |
| 传播延迟 tpLH / tpHL（最大） | 3.3 | 共模瞬态抗扰度（最小） | Commercial |
机械参数
| 宽度 | 6.1mm | 高度 | 1.15mm |
| 长度 | 12.5mm | 重量 | 0.0001 |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 引脚数 | :48 | 封装形式 | 48TSSOP |
| 冷却的封装 | TSSOP | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 12.6(Max) | 包装数量 | TSSOP |
| 尺寸/外形 | 12.5 x 6.1 x 1.15mm | 位数 | 48 |
| 外壳尺寸-插件 | 1.05(Max) | 供应商器件封装 | 48-TSSOP |
产品信息
| 系列 | :LVTH | 工艺（或'制程'，根据具体值如CMOS） | BiCMOS |
| 功能 | Bus Transceiver | 极性 | Non-Inverting |
| 软件 | SCBS143R | 基本单元 | :7416245 |
| 技术 | BiCMOS | 射频系列/标准 | LVT |
| 使用的IC/零件 | View | 印刷电路板数量 | 48 |
| 输入数量及类型 | 1 Low/High | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40°C ~ 85°C |
