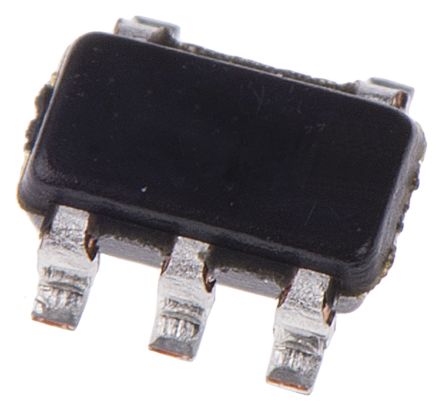

SN74LVC1G14DBVT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Inverter Schmitt Trigger 1-Element CMOS 5-Pin SOT-23 T/R IC SGL SCHMT-TRIG INVERT SOT23-5 Inverters SNGL Schmitt Trigger Inverter IC, INVERTER, SNG, SCMT-TRG, 5SOT23 Single Schmitt-Trigger Inverter Logic IC SOT-23-5, SN74LVC1G14, SN74LVC1G14DBVT, Texas Instruments CMOS 反相器, 32mA, 5针 SOT-23封装 |
| 分类 |
商业参数
| 其他名称 | 296-26597-1 | 产品类别 | Inverters |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | SOT-23 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 电压 | 1.8 2.5 3.3 5 | 输入类型 | Schmitt Trigger |
| 逻辑类型 | LVC | 输出类型 | Schmitt Trigger |
| 位数 | 1 | 额定电压 | 1.8|2.5|3.3|5 V |
| 输出电流 | :32mA | 输入数量 | 1 |
| 供电电压 | 1.65 V ~ 5.5 V | 传播延迟 | 50 pF |
| 元件数量 | 1 | 最大额定电流 | Catalog |
| 输出1频率 | 150 | 施密特触发器输入 | Yes |
| 最小供电电压 | 1.65 V | 传播延迟（最大） | 11 |
| 静态电流 (Iq) | 10 uA | 传播延迟时间 | 11 ns |
| 逻辑电压 - VIL, VIH | 0.39 V ~ 1.87 V | 静态电流（最大） | 10µA |
| 输出高/低电流 | 32 mA | 输出源/灌电流 | 32/-32 |
| 最大传播延迟 @ V, 最大CL | 5.5@3.3V|5@5V ns | 传播延迟 tpLH / tpHL（最大） | 11 6.5 5.5 5 |
机械参数
| 宽度 | 1.75(Max) | 重量 | 0.000557 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :5 |
| 封装形式 | 5SOT-23 | 冷却的封装 | SOT-23 |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3.05(Max) |
| 包装数量 | SOT-23 | 位数 | 5 |
| 外壳尺寸-插件 | 1.3(Max) | 供应商器件封装 | SOT-23-5 |
产品信息
| 系列 | SN74LVC1G14 | 已删除 | Compliant |
| 工艺（或'制程'，根据具体值如CMOS） | CMOS | 产品特性 | Schmitt Trigger |
| 功能 | Inverter Schmitt Trigger | 软件 | SCES218W |
| 基本单元 | :74 | 技术 | CMOS |
| 图案编号 | Y | 电路数 | 1 |
| 射频系列/标准 | LVC | 使用的IC/零件 | View |
| 印刷电路板数量 | 5 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 85 °C |
文档与媒体
