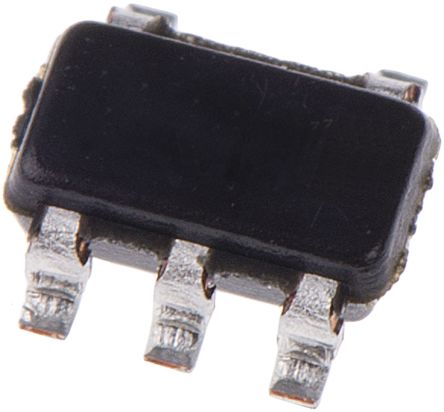

SN74AHCT1G125DBVR
| 制造商 | Texas Instruments Incorporated |
| 描述 | Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R IC BUS BUFF TRI-ST N-INV SOT23-5 Buffers & Line Drivers Tri-State Single Bus IC, 74AHCT SINGLE GATE, SMD Single Bus Buffer Gate With 3-State Output Logic IC SOT-23-5, SN74AHCT1G125, SN74AHCT1G125DBVR, Texas Instruments HCT 总线缓冲器, 8.5 ns @ 50 pF, 8mA, 4.5 → 5.5 V, 5针 SOT-23封装 |
| 分类 |
商业参数
| 其他名称 | 296-4708-2 | 产品类别 | Buffers & Line Drivers |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 3000 |
| 标准封装名称 | SOT-23 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | :74AHCT1G125 | 抗辐射加固 | No |
电气参数
| 电压 | 5 | 输入类型 | CMOS |
| 逻辑类型 | AHCT | 输出类型 | 3-State |
| 输入信号 | Single-Ended | 位数 | 1 |
| 额定电压 | 4.5 | 输入数量 | 1 |
| 供电电压 | 4.5 V ~ 5.5 V | 输出数量 | 1 |
| 通道数量 | 1 | 元件数量 | 1 |
| 最大额定电流 | Catalog | 输出1频率 | 75 |
| 施密特触发器输入 | No | 最小供电电压 | 4.5 V |
| 传播延迟（最大） | 10 | 静态电流 (Iq) | 1 uA |
| 传播延迟时间 | 7.5 ns at 5 V | 静态电流（最大） | 0.01 |
| 输出高/低电流 | 8mA, 8mA | 每元件位数 | 1 |
| 输出源/灌电流 | 8/-8 | 最大传播延迟 @ V, 最大CL | 7.5@5V ns |
| 传播延迟 tpLH / tpHL（最大） | 6 | ||
机械参数
| 宽度 | 1.75(Max) | 重量 | 0.000557 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :5 |
| 封装形式 | 5SOT-23 | 冷却的封装 | SOT-23 |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3.05(Max) |
| 包装数量 | SOT-23 | 位数 | 5 |
| 外壳尺寸-插件 | 1.3(Max) | 供应商器件封装 | SOT-23-5 |
产品信息
| 系列 | SN74AHCT1G125 | 已删除 | Compliant |
| 工艺（或'制程'，根据具体值如CMOS） | CMOS | 功能 | Buffer/Line Driver |
| 极性 | Non-Inverting | 软件 | SCLS378M |
| 基本单元 | :74 | 技术 | CMOS |
| 门数量 | :1 | 功能框图 | alt_scls378m.gif |
| 射频系列/标准 | AHCT | 使用的IC/零件 | View |
| 印刷电路板数量 | 5 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40°C ~ 85°C |
文档与媒体
