点击放大查看

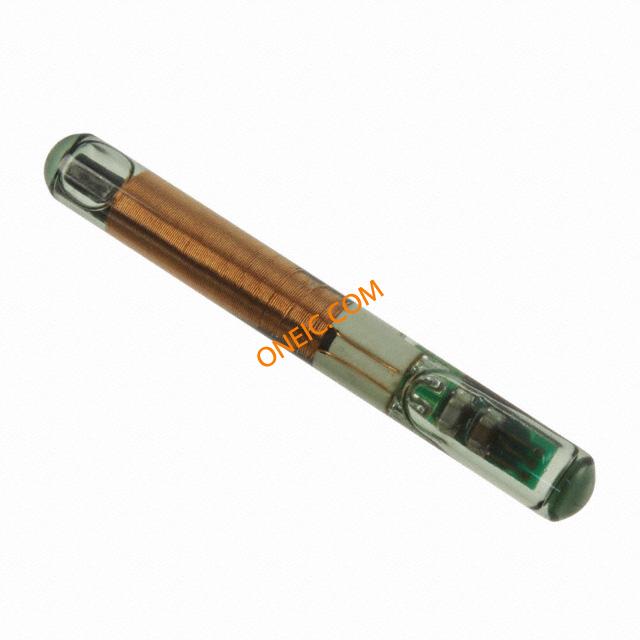

RI-TRP-DR2B-30
| 制造商 | Texas Instruments Incorporated |
| 描述 | Transponder RFIDT RFID Transponders 32mm Glass Transponder Multipg 32MM GLASS TRANSPONDER 32MM GLASS TRANSPONDER M/P RFID 32MM GLASS TRANSPO 0RFIDT 32mm Glass Transponder Multipage |
| 分类 |
商业参数
| 其他名称 | 481-1128-1 | 产品类别 | RFID Transponders |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 2000 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 防护类型 | Hermetically sealed | 零件状态 | NRND |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 134.2 kHz | 调制方式 | FSK |
| 复位时间 | 86 | 传输速率 | FSK HDX |
| 频率组 | Read / Write | 写入周期时间 - 字、页 | 293 |
| 共模瞬态抗扰度（最小） | Commercial | ||
机械参数
| 深度 | 3.85 mm | 高度 | 32.2 mm |
| 包装方式 | Reel | 封装形式 | 3.85mm Dia x 32.2mm |
| 旋转角度 | No | 总长度 | 3.85 mm |
| 包装数量 | RFIDT | 外径 | 3.85 |
| 面板尺寸 | 3.85 x 32.2 | 外壳尺寸-插件 | 32.2 |
| 供应商器件封装 | 0-RFIDT | 外壳与棱镜材料 | Glass |
产品信息
| 系列 | RI-TRP-DR2B | 射频类型 | Read / Write |
| 软件 | SCBS842B | 可编程性 | 1360 |
环境参数
| 工作温度 | -25 to 85 °C | 存储/冷藏温度 | -40 to 100 Max 125 for total 1000 hours |
