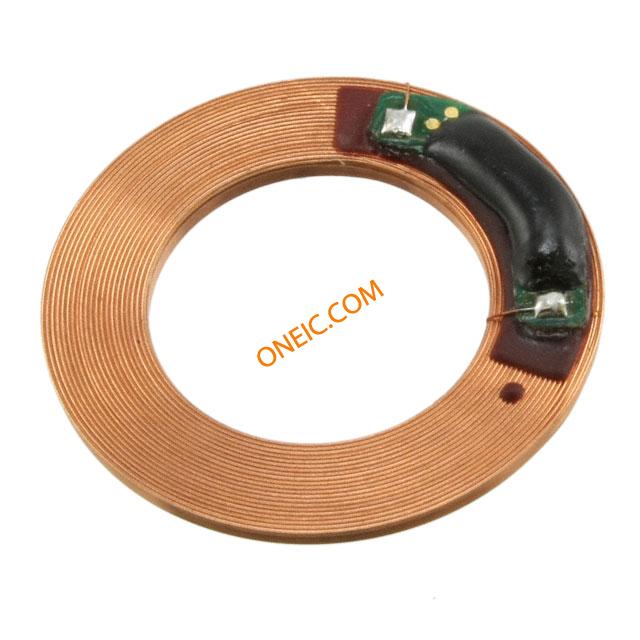

RI-INL-R9QM-30
| 制造商 | Texas Instruments Incorporated |
| 描述 | 24MM DISK INLAY R/O RFID Transponders 24 mm Circular Inlay R/O 24 MM LF CIRCULAR INLAY RFID TRANSP 24MM DISK INLAY R/O 24 mm Circular Inlay R/O |
| 分类 |
商业参数
| 产品类别 | RFID Transponders | 标准包装数量 | 1,200 |
| 工厂包装数量 | 1200 | 标准封装名称 | RFIDN |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | ||
电气参数
| 频率 | 134.2 kHz | 调制方式 | FSK |
| 复位时间 | 70 | 传输速率 | FSK HDX |
| 位数 | 64 | 频率组 | Read Only |

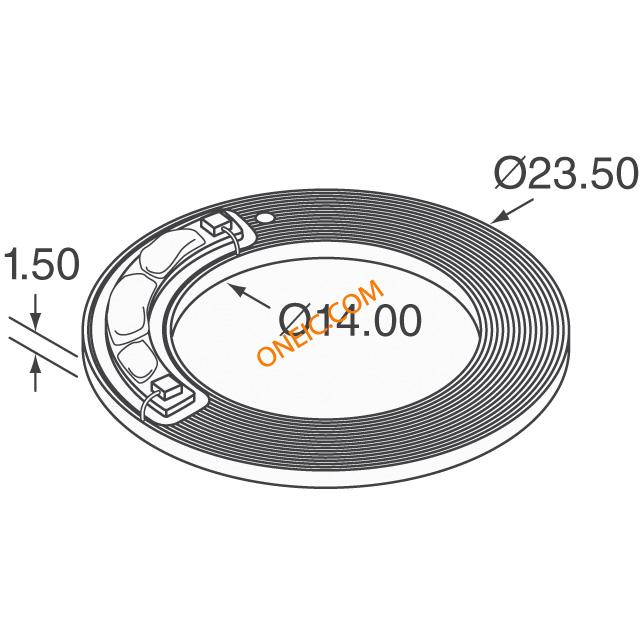

机械参数
| 宽度 | 14.3 | 包装方式 | Tray |
| 封装形式 | 24mm Dia Ring | 旋转角度 | No |
| 总长度 | 24.1 | 包装数量 | RFIDN |
| 面板尺寸 | 24mm Dia. | 外壳尺寸-插件 | 2.7 |
| 供应商器件封装 | 0-RFIDN | ||
产品信息
| 系列 | RI-INL-R9QM | 射频类型 | Read Only |
| 产品特性 | ISO/IEC 11784/11785 | 软件 | SCBS871 |
| 主要用途 | ISO/IEC 11784/11785 | 制造商全称 | Texas Instruments |
环境参数
| 测试温度 | 0 to 0 | 工作温度 | - 25 C to + 70 C |
| 存储/冷藏温度 | -25 to 70 | ||
