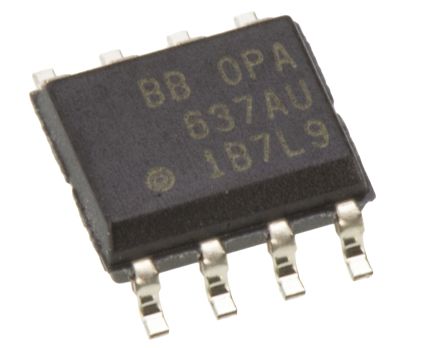

点击放大查看
OPA637AU
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP ±18V 8-Pin SOIC Tube IC OPAMP GP 80MHZ 8SOIC OPA637AU, Operational Amplifier 80MHz, 8-Pin SOIC High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp OP Amp Single GP �18V 8-Pin SOIC Tube Numbe IC, OP AMP PRECISION HI SPEED Precision High-Speed Difet(R) Operational Amplifiers Operational Amplifier Single 80 MHz SO-8, OPA637, OPA637AU, Texas Instruments Texas Instruments 运算放大器, 80MHz, 8针 SOIC |
| 分类 |
商业参数
| 产品 | Current Feedback Amplifier | 产品类别 | High Speed Operational Amplifiers |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 75 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 90261089 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 增益 | 116 dB | 电源抑制比 | 100 dB |
| 压摆率 | 135@±15V V/us | 输出类型 | No |
| 输入功率 | Dual | 额定功率 | 1 W |
| 建立时间 | 450 ns | 晶体管类型 | :High Speed |
| 共模抑制比、电源抑制比（典型） | 100 dB | 输出电流 | 7mA |
| 供电电流 | 7.5@±15V mA | 供电电压 | ±4.5 V |
| 通道数量 | 1 | 元件数量 | 1 |
| 输入偏置电流 | 2pA | 最大额定电流 | Catalog |
| ADC/DAC 数量 | :1 | 最小输入电压 | 130µV |
| 增益带宽积 | 80 MHz | 最大功耗 | 1000 mW |
| 静态电流 (Iq) | 7.5 | 输入偏置电流（最大） | 0.00001@±15V uA |
| 输出电流/通道 | 45mA | 供电电压 (Vcc/Vdd) | 36 |
| 输入噪声电流密度 | 0.0025@±15V pA/rtHz | 输入噪声电压密度 | 20@±15V nV/rtHz |
| 电源电压范围（典型） | �15 V | 输入失调电压（最大） | 0.5@±15V mV |
| 电压输出差（典型值）@ 距离 | 116 dB | ||
机械参数
| 重量 | 0.002677 oz | 带宽 | :80MHz |
| 包装方式 | Tube | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 3 - 168 hours | 包装数量 | 75 | TUBE |
| 位数 | 8 | 供应商器件封装 | 8-SOIC |
产品信息
| 类型 | General Purpose Amplifier | 系列 | OPA637 |
| 关断 | No | 软件 | SBOS165 |
| 基本单元 | :637 | 技术 | BiFET |
| 架构 | Voltage Feedback | 放大器类型 | General Purpose |
| 电路数 | 1 | 使用的IC/零件 | View |
环境参数
| 测试温度 | -25 to 85 | 工作温度 | -25 to 85 °C |
