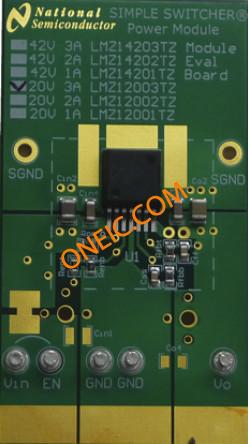

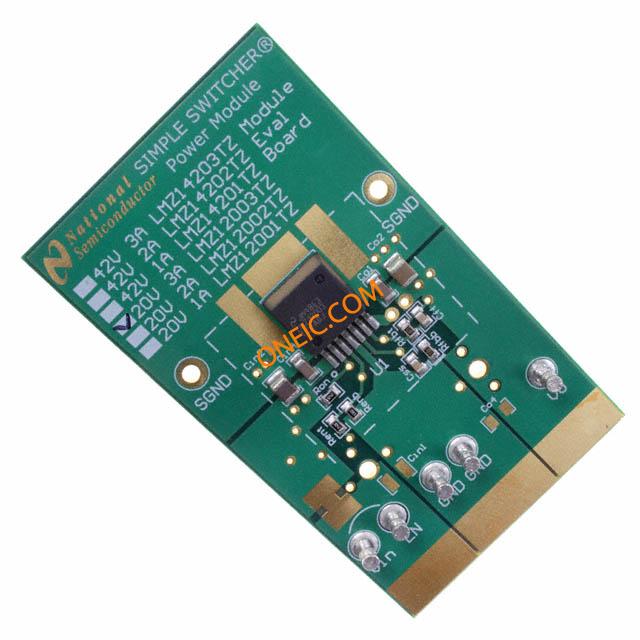

LMZ12003EVAL/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | Simple Switcher Power Module Evaluation Board Is Optimized For Peak Performance And Increased Flexibility Power Management IC Development Tools LMZ12003 EVAL BOARD BOARD EVAL PWR MODULE LMZ12003 LMZ12003EVAL/NOPB, Development Kit, Power Module Evaluation Board EVAL BOARD, LMZ12003 1.8V, 3A REGULATOR Texas Instruments 模拟开发套件 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85423990 | ||
电气参数
| 额定电压 | 4.5 V to 20 V | 输出电流 | 3 A |
| 元件数量 | :LMZ12003 | 稳压器拓扑 | Buck |
| 开关频率 | Up to 1MHz | 最小输入电压 | 1.8V |
机械参数
| 重量 | 0 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 77 mm x 43.3 mm | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :Integrated shielded inductor within the switcher | 功能 | The SIMPLE SWITCHER power module evaluation board is optimized for peak performance and increased flexibility |
| 套件类型 | :Power Management | 技术 | Power Management |
| 套件内容 | Power Module Evaluation Board | 主要用途 | DC/DC, Step Down |
| 卡标准 | Development Kit | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | LMZ12003 | 射频系列/标准 | LMZ12003 |
| 使用的IC/零件 | LMZ12003 | ||
环境参数
| 机械寿命 | New At Mouser | 工作温度 | + 80 C |
文档与媒体
相关型号

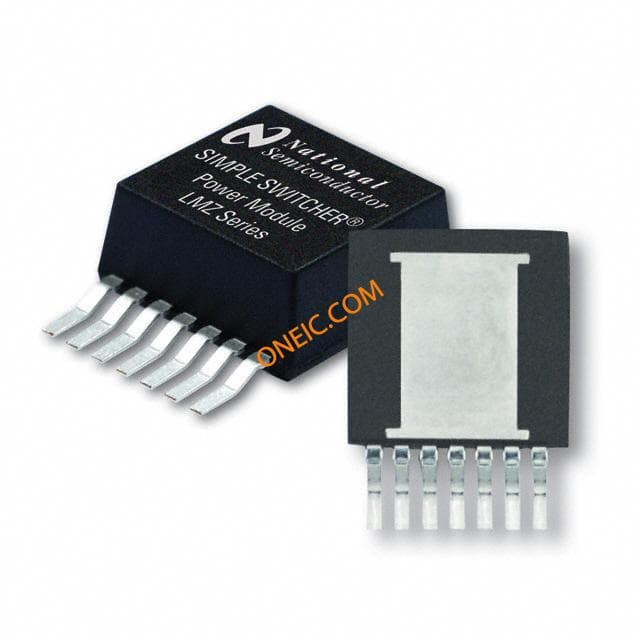

LMZ12003TZ-ADJ/NOPB
