LMZ12003DEMO/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | LMZ12003 DEMO BOARD Power Management IC Development Tools LMZ12003 DEMO BOARD BOARD DEV PWR MODULE LMZ12003 EVAL BOARD, LMZ12003 1.8V, 3A REGULATOR Texas Instruments SIMPLE SWITCHER 套件 LMZ12003 电源模块 演示板 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85423990 |
电气参数
| 额定电压 | 4.5 V to 20 V | 输出电流 | 3 A |
| 元件数量 | :LMZ12003 | 稳压器拓扑 | Buck |
| 开关频率 | Up to 1MHz | 最小输入电压 | 1.8V |
机械参数
| 重量 | 0 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 2.3 in x 1.7 in | ||
产品信息
| 类型 | DC/DC Converters, Regulators & Controllers | 内容 | Board |
| 产品特性 | :Integrated shielded inductor within the switcher | 功能 | The SIMPLE SWITCHER power module demonstration board is optimized for peak performance and small footprint |
| 套件类型 | :Power Management | 套件内容 | :Evaluation Board for LMZ12003 |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | LMZ12003 | 使用的IC/零件 | LMZ12003 |
环境参数
| 机械寿命 | New At Mouser | 工作温度 | + 80 C |
文档与媒体
相关型号

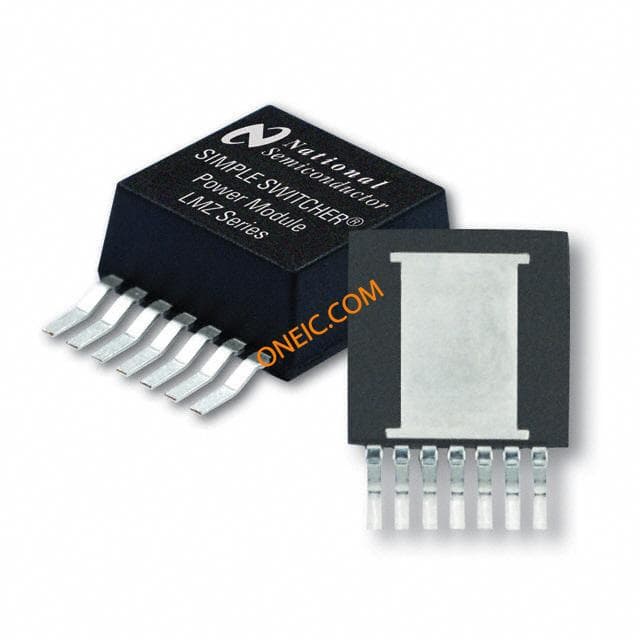

LMZ12003TZ-ADJ/NOPB
Texas Instruments Incorporated
. LMZ12003TZ-ADJ/NOPB - Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 6V 3A 4.5V - 20V Input from Texas Instruments. from now!
LMZ12003TZX-ADJ/NOPB
Texas Instruments
DC/DC Switching Converters 3A Pwr Mod w/ 20V Max Input Vtg Module DC-DC 1-OUT 0.8V to 6V 3A 7-Pin TO-PMOD IC BUCK SYNC ADJ 3A TO-PMOD-7 Voltage Regulators - Switching Regulators 3A Pwr Mod w/ 20V Max Input Vtg IC, POWER MODULE, TO-PMOD-7 3A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage Switching Voltage Regulators 3A Pwr Mod w/ 20V Max Input Vtg
LMZ12003TZE-ADJ/NOPB
texas instruments
Power Module 7-Pin TO-PMOD Rail DC/DC Switching Converters DC/DC Switching Converters 1A Pwr Mod W/ 20V Max Input Vtg Module DC-DC 1-OUT 0.8V to 6V 3A 7-Pin TO-PMOD EP IC BUCK SYNC ADJ 3A TO-PMOD-7 LMZ12003TZE-ADJ/NOPB, Switching Regulator, Buck Controller, 3A, Adjustable, 0.8 to 6V, 400kHz, 7-Pin TO-PMOD Voltage Regulators - Switching Regulators 1A Pwr Mod W/ 20V Max Input Vtg DC-DC CONV, BUCK, 1MHZ, TO-PMOD-7 3A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage Switching Regulator 3 A TO-PMOD-7, LMZ12003TZE-ADJ/NOPB, Texas Instruments Texas Instruments 降压 开关稳压器, 3A, 可调输出, 0.8 → 6 V, 400 kHz, 7针 TO-PMOD封装 Switching Voltage Regulators 1A Pwr Mod W/ 20V Max Input Vtg
