点击放大查看

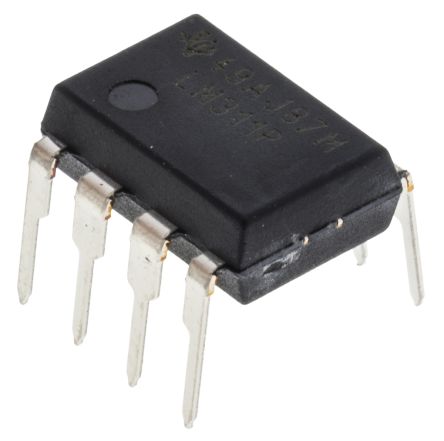

LM311P
| 制造商 | Texas Instruments Incorporated |
| 描述 | Comparator Single ±15V/30V 8-Pin PDIP Tube Comparator ICs Diff Comparator IC DIFF COMP W/STROBE 8DIP LM311P, Single Comparator Open Collector/Emitter 0.165μs 5, 9, 12, 15, 18, 24, 28V 8-Pin PDIP Comparator Single ?15V/30V 8-Pin PDIP Tube IC, COMPARATOR, DIP8, 311 Comparator; differential; 115ns; 3.5÷30VDC; DIP8 Differential Comparator With Strobes Comparator Single DIL-8, LM311, LM311P, Texas Instruments Texas Instruments 比较器, 开路集电极/发射极输出, 0.165μs, 多种电源电压适用, 8引脚 PDIP封装 Analog Comparators Diff Comparator |
| 分类 |
商业参数
| 产品 | Analog Comparators | 产品类别 | Comparator ICs |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 增益 | 106.02 dB | 延迟时间 | 115ns |
| 输出类型 | Open Collector/Emitter | 输入功率 | Single/Dual |
| 响应时间 | 0.165 us | 比较器类型 | :High Speed |
| 输出功能 | Yes | 输出电流 | 7.5 mA |
| 供电电流 | 7.5 mA | 供电电压 | 3.5 V |
| 通道数量 | 1 | 元件数量 | 1 |
| 阈值电压 | 7.5 mV | 输入偏置电流 | 250 |
| 最大额定电流 | Catalog | 最小输入电压 | 7.5 mV |
| 输出电流（典型） | 50 mA | 静态电流 (Iq) | 7.5 |
| 静态电流（最大） | 7.5mA | 输入偏置电流（最大） | 0.25µA @ ±15V |
| 供电电压 (Vcc/Vdd) | 30 | 25°C失调电压 | 7.5 |
| 电源电压范围（典型） | �3/�5/�9/�12 V | 输入失调电压（最大） | 7.5 mV |
| 电压输出差（典型值）@ 距离 | 106.02 dB | ||
机械参数
| 重量 | 0.015535 oz | 最大负载 | 0.5 |
| 包装方式 | Tube | 端接方式 | :Through Hole |
| 第二连接器 | differential | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :8 |
| 封装形式 | 8PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :MSL 1 - Unlimited | 包装数量 | 1000 |
| 位数 | 8 | 供应商器件封装 | 8-PDIP |
产品信息
| SPG | 1000 | 类型 | General Purpose |
| 系列 | LM311 | 产品特性 | Strobe Vos Adj Pin |
| 软件 | SLCS007I | 基本单元 | :311 |
| 技术 | Bipolar | 单元数量 | 1 |
| 功能框图 | fbd_slcs007i.gif | 使用的IC/零件 | View |
| 输出配置 | :MOS, TTL | 比较器数量 | :1 |
环境参数
| 开关次数 | 0.115 | 测试温度 | 0 to 70 |
| 工作温度 | 0 to 70 °C | ||
