点击放大查看

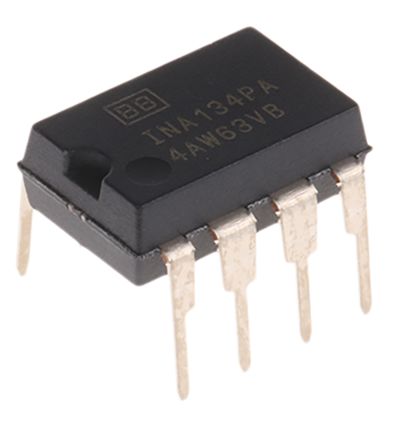

INA134PA
| 制造商 | Texas Instruments Incorporated |
| 描述 | SP Amp DIFF AMP Single ±18V 8-Pin PDIP Tube IC AUDIO DIFF RCVR 8-DIP INA134PA, Differential Line Receiver 8-Pin PDIP Audio Transmitters, Receivers, Transceivers Audio Diff Line Receivers 0dB (G=1) SP Amp DIFF AMP Single �18V 8-Pin PDIP Tube AMP DIFF LINE RECEIVER, DIP8, 134 Operational amplifier; 3.1MHz; 4÷18VDC; Channels:1; DIP8 Audio Differential Line Receivers, 0dB (G=1) Instrumentation Amplifier DIL-8, INA134, INA134PA, Texas Instruments 差分线路接收器, 8针 PDIP封装 Audio Amplifiers Audio Diff Line Receivers 0dB (G=1) |
| 分类 |
商业参数
| 产品类别 | Audio Transmitters, Receivers, Transceivers | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 50 | 标准封装名称 | PDIP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 0 dB | 接口 | :(Not Applicable) |
| 压摆率 | :14V/µs | 最大栅源电压 Vgs | 36 |
| 输入范围 | 25 | 输出类型 | No |
| 输入功率 | Dual | 上升时间（典型） | 14V/μs |
| 共模抑制比、电源抑制比（典型） | 74dB | 输出电流 | 2.4 mA |
| 供电电压 | ±4 V | 供电类型 | Dual |
| 通道数量 | 1 | 元件数量 | 1 |
| 输入电阻 | 0.05MΩ | 最小视场 | 8 |
| 最大额定电流 | Catalog | ADC/DAC 数量 | :1 |
| 最小输入电压 | 0(Typ) dB | 轨到轨工作 | No |
| 静态电流 (Iq) | 2.4 | 电源电压范围（典型） | �5/�9/�12/�15 V |
| 频段（低/高） | 3.1MHz | 输入失调电压（最大） | 1mV |
| 共模瞬态抗扰度（最小） | Extended Industrial | ||
机械参数
| 宽度 | 6.35mm | 高度 | 4.57mm |
| 长度 | 9.81mm | 重量 | 0.018455 oz |
| 带宽 | :3.1MHz | 包装方式 | Tube |
| 封装体颜色 | :DIP | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| -3dB带宽 | 3.1 | 安装样式 | Through Hole |
| 引脚数 | :8 | 封装形式 | 8PDIP |
| 冷却的封装 | PDIP | 材料表面处理 | :- |
| 总长度 | 10.16(Max) | 包装数量 | PDIP |
| 尺寸/外形 | 9.81 x 6.35 x 4.57mm | 位数 | 8 |
| 外壳尺寸-插件 | 5.08(Max) - 0.51(Min) | 供应商器件封装 | 8-PDIP |
产品信息
| SPG | 5 | 类型 | Differential Amplifier |
| 系列 | INA134 | 功能 | Audio Differential Line Receiver |
| 软件 | SBOS071 | 基本单元 | :134 |
| 应用 | Amplifiers, Receivers | 放大器类型 | :Differential Receiver |
| 单元数量 | 1 | 使用的IC/零件 | :INA134PA |
| 其他规格 | :Audio Differential Line Receiver | 印刷电路板数量 | 8 |
环境参数
| 工作温度 | -40 to 85 °C | ||
