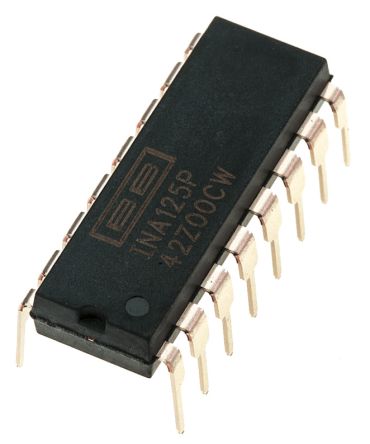

INA125P
| 制造商 | Texas Instruments Incorporated |
| 描述 | SP Amp INSTR Amp Single ±18V/36V 16-Pin PDIP Tube IC OPAMP INSTR 150KHZ 16DIP Instrumentation Amplifiers w/Precision Voltage Reference SP Amp INSTR Amp Single �18V/36V 16-Pin PDIP Tube AMP INST, PRECISION, PDIP16, 125 Instrumentation Amplifier with Precision Voltage Reference Texas Instruments 仪表放大器, 0.25mV偏置, 78dB CMRR, 5 V电源, 16针 PDIP封装 |
| 分类 |
商业参数
| 产品类别 | Instrumentation Amplifiers | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 25 | 标准封装名称 | PDIP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 80 dB | 输出端 | :Single Ended |
| 压摆率 | 0.2 V/µs | 输出类型 | No |
| 输入功率 | Single/Dual | 共模抑制比、电源抑制比（典型） | 100 dB |
| 输出电流 | 460µA | 供电电压 | 2.7 V |
| 供电类型 | Single|Dual | 通道数量 | 1 |
| 元件数量 | 2 | 输入电阻 | 100000 MOhms |
| 非易失性存储器 | 0.012 | 输入偏置电流 | 10nA |
| 最大额定电流 | Catalog | 噪声（10Hz至10kHz） | 38 |
| ADC/DAC 数量 | :2 | 最小输入电压 | 80 dB |
| 增益带宽积 | 150 KHz | 轨到轨工作 | No |
| 静态电流 (Iq) | 0.46 | 输入偏置电流（最大） | 0.025@±15V |
| 输出电流/通道 | 12mA | 供电电压 (Vcc/Vdd) | 36 |
| 电源电压范围（典型） | �15 V | 输入失调电压（最大） | 250 |
机械参数
| 宽度 | 6.6(Max) | 重量 | 0.037172 oz |
| 带宽 | :150kHz | 包装方式 | Tube |
| 引脚样式 | Through Hole | 端接方式 | :Through Hole |
| 安装类型 | Through Hole | -3dB带宽 | 150kHz |
| 安装样式 | Through Hole | 引脚数 | :16 |
| 封装形式 | 16PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 19.69(Max) |
| 包装数量 | PDIP | 位数 | 16 |
| 外壳尺寸-插件 | 5.08(Max) - 0.51(Min) | 供应商器件封装 | 16-PDIP |
产品信息
| 类型 | Instrumentation Amplifier | 系列 | INA125 |
| 软件 | SBOS060 | 基本单元 | :125 |
| 可编程性 | :1 | 放大器类型 | Instrumentation |
| 电路数 | 1 | 使用的IC/零件 | View |
| 印刷电路板数量 | 16 | 可编程特性 | :1000 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -55 to 125 °C |
