DRV8801EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Board For DMOS Full-Bridge Motor Drivers Power Management IC Development Tools DRV8801 Eval Mod EVAL MODULE FOR DRV8801 DRV8801, DC BRUSHED MOTOR, EVAL MODULE EVAL BOARD, DRV8312 FULL BRIDGE MOTOR DRIVER |
| 分类 |
商业参数
| 产品 | Evaluation Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | RoHS Not Applicable | 海关税号 | 84733020 |
电气参数
| 额定电压 | 8 V to 36 V | 输出电流 | 2.2 A |
| 元件数量 | :DRV8801 | ||
机械参数
| 重量 | 0.25 | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 嵌入式 | No | 产品特性 | :- |
| 功能 | The DRV8801 evaluation module (EVM) demonstrates the capabilities and performance of the DRV8801 | 套件类型 | :Drivers |
| 套件内容 | :Eval Module DRV8801 | 主要用途 | Power Management, Motor Control |
| 工具类型/特性 | DRV8801 | 主要特性 | Diagnostic Output, Synchronous Rectification |
| 射频系列/标准 | DRV8801 | 使用的IC/零件 | DRV8800, DRV8801 |
| 芯片组制造商 | :Texas Instruments | 次要特性 | Over Current and Crossover-Current Protection, Internal Under Voltage Lockout (UVLO) |
| 应用细节 | :DC Brushed Motor | ||
文档与媒体
相关型号

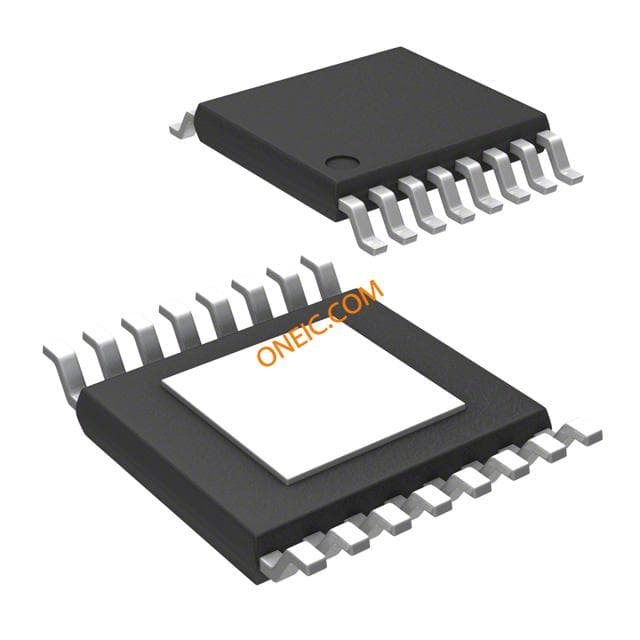

DRV8800PWPR
texas instruments
DMOS Full Bridge Motor Driver 16-Pin HTSSOP EP T/R IC MOTOR DRIVER PAR 16HTSSOP Motor / Motion / Ignition Controllers & Drivers Full Bridge Motor Drvr FullBridgeMotorDriver 2.8A Brushed DC Motor Driver (PH/EN Ctrl)
DRV8800PWP
texas instruments
DMOS Full Bridge Motor Driver 16-Pin HTSSOP EP Tube IC MOTOR DRIVER PAR 16HTSSOP DRV8800PWP, Motor Driver, Motor / Motion / Ignition Controllers & Drivers Full Bridge Motor Drvr 2.8A Brushed DC Motor Driver (PH/EN Ctrl) Texas Instruments 电机驱动器 IC , 用于有刷直流电机, 1.8A, 3.8W, 8 → 38 V

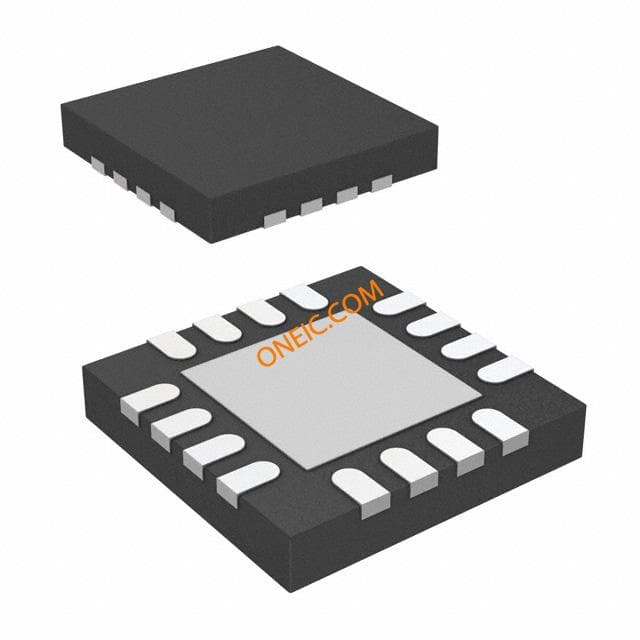

DRV8801QRTYRQ1
texas instruments
DMOS Full Bridge Motor Driver 32V 16-Pin WQFN EP T/R IC MOTOR DRIVER PAR 16QFN Motor / Motion / Ignition Controllers & Drivers AC Full Bridge Motor Driver Automotive 2.8A Brushed DC Motor Driver with Current Sense (PH/EN Ctrl)
DRV8800RTYT
texas instruments
DMOS Full Bridge Motor Driver 16-Pin WQFN EP T/R Motor / Motion / Ignition Controllers & Drivers Full Bridge Motor Driver IC MOTOR DRIVER PAR 16QFN IC, DMOS FUL-BRDG MOTOR DVR 16QFN 2.8A Brushed DC Motor Driver (PH/EN Ctrl) Texas Instruments 电机驱动器 IC , 用于刷式直流, 1.8A, 8 → 32 V
DRV8801RTYT
texas instruments
DMOS Full Bridge Motor Driver 16-Pin WQFN EP T/R IC MOTOR DRIVER PAR 16QFN Motor / Motion / Ignition Controllers & Drivers Full bridge motor driver 2.8A Brushed DC Motor Driver with Current Sense (PH/EN Ctrl) Texas Instruments 电机驱动器 IC , 用于有刷直流电机, 1.8A, 8 → 36 V
DRV8800RTYR
texas instruments
DMOS Full Bridge Motor Driver 16-Pin WQFN EP T/R IC MOTOR DRIVER PAR 16QFN Motor / Motion / Ignition Controllers & Drivers Full Bridge Motor Driver NaxosMotorDriver 2.8A Brushed DC Motor Driver (PH/EN Ctrl)
DRV8801RTYR
texas instruments
DMOS Full Bridge Motor Driver 16-Pin WQFN EP T/R IC MOTOR DRIVER PAR 16QFN Motor / Motion / Ignition Controllers & Drivers Full bridge motor driver 2.8A Brushed DC Motor Driver with Current Sense (PH/EN Ctrl)
DRV8801PWP
texas instruments
DMOS Full Bridge Motor Driver 16-Pin HTSSOP EP Tube IC MOTOR DRIVER PAR 16HTSSOP DRV8801PWP, Motor Driver, Motor / Motion / Ignition Controllers & Drivers Full Bridge Motor Drvr IC, FULL BRIDGE MOTOR DRIVER 2.8A Brushed DC Motor Driver with Current Sense (PH/EN Ctrl) Bridge Driver IC HTSSOP-16, DRV8801, DRV8801PWP, Texas Instruments Texas Instruments 电机驱动器 IC , 用于有刷直流电机, 1.8A, 3.8W, 8 → 38 V
DRV8801PWPR
texas instruments
DMOS Full Bridge Motor Driver 16-Pin HTSSOP EP T/R IC MOTOR DRIVER PAR 16HTSSOP Motor / Motion / Ignition Controllers & Drivers Full Bridge Motor Drvr 2.8A Brushed DC Motor Driver with Current Sense (PH/EN Ctrl)
