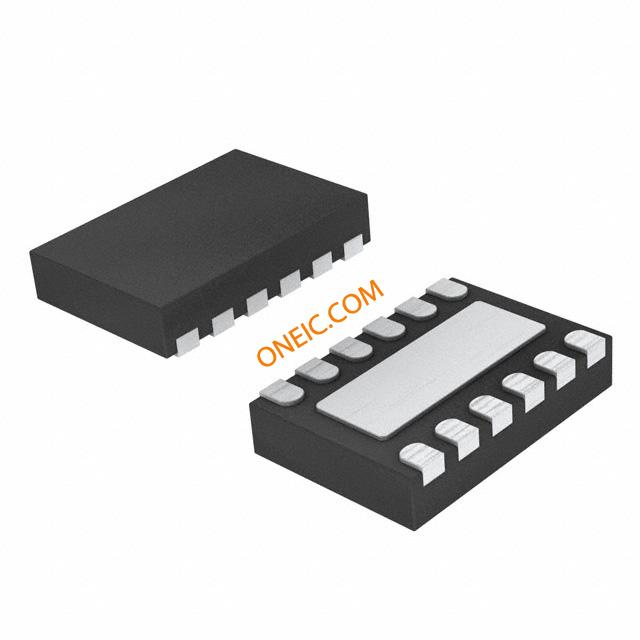

DAC7551IDRNTG4
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 1-CH Resistor-String 12-Bit 12-Pin USON EP T/R Digital to Analog Converters - DAC 12-Bit UltrLo Glitch Vltg Output Cnvtr DAC 1-CH Resistor-String 12-bit 12-Pin USON EP T/R IC DAC 12BIT OCTAL 12-SON DAC7551IDRNTG4, 12-Bit 12 Bit DAC 500ksps, SPI, Microwire, 12-Pin USON, USON EP D/A CONVERTER, 12BIT, 1-CH, 7551 12-Bit, Ultralow Glitch, Voltage Output Digital to Analog Converter |
| 分类 |
商业参数
| 产品类别 | Digital to Analog Converters - DAC | 标准包装数量 | Cut Tape, Tape & Reel |
| 工厂包装数量 | 250 | 标准封装名称 | USON |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | :7551 | 抗辐射加固 | No |
电气参数
| 接口 | Serial (3-Wire, SPI, QSPI, Microwire) | 线性度 | :0.35LSB |
| 满量程 | ±0.5 %FSR | 输入类型 | :Serial |
| 分辨率 | 12 Bit | 输出类型 | Voltage |
| 输出范围 | 0 | INL/DNL（LSB） | ±1 LSB |
| 输入功率 | Single | 建立时间 | 5 us |
| 转换器类型 | General Purpose | 数据接口 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ |
| 位数 | 12 | 基准类型 | Ext |
| 数据速率（最大） | 500 KSPS | DAC数量 | 1 |
| 输出电流 | :150µA | 供电电压 | 5.5 V |
| 失真额定值（如THD） | +/- 1 LSB | 输出数量 | 1 |
| 供电类型 | Single | 分辨率（位） | :12bit |
| 电压基准 | External | 通道数量 | 1 |
| 采样频率 | :500kSPS | 最大额定电流 | Catalog |
| 供电电源 | Single Supply | 增益带宽积 | 0.15 |
| 平均正向功率 | 0.27 | 数字供电电压 | :2.7V to 5.5V |
| 内部供电电压 | :2.7V to 5.5V | 输出数量与类型 | 1 Voltage, Unipolar |
| 采样率（每秒） | 500k | 电源电压范围（典型） | Not Required V |
机械参数
| 宽度 | 3 | 重量 | 0.000575 oz |
| 包装方式 | Reel | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :12 | 封装形式 | 12USON EP |
| 冷却的封装 | USON EP | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 2 | 包装数量 | USON EP |
| 位数 | 12 | 外壳尺寸-插件 | 0.75 |
| 供应商器件封装 | 12-USON (3x2) | ||
产品信息
| 系列 | DAC7551 | 软件 | SLAS441E |
| 基本单元 | :7551 | 架构 | Resistor-String |
| 功能框图 | fbd_slas441e.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 12 | A/D转换器数量 | 1 |
环境参数
| 测试温度 | -40 to 105 | 工作温度 | -40 to 105 °C |
| 结工作温度 | 105C | ||
